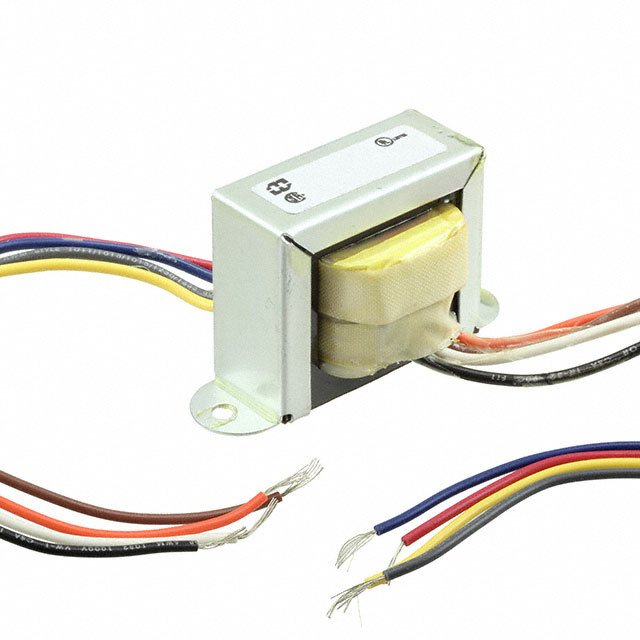

266G12
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 266G12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 266G12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 266G12 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR LAMINATED 6.3VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $12.619 | $11.134 | $10.763 | $9.65 | $9.278 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 266G12 | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | XFRMR LAMINATED 6.3VA CHAS MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3823 pcs | Data sheet | 266 Series Connection Sheet266x12, 266x16, 266x20, 266x24, 266x48 |
| Category | Transformers | Weight | 0.6 lb (272.16g) |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V | Voltage - Primary | 117V, 234V |
| Voltage - Isolation | 2000Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 71.37mm L x 40.64mm W |
| Series | 266 | Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual | Power - Max | 6.3 VA |
| Other Names | 266G12-ND HM4936 |
Mounting Type | Chassis Mount |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 42.67mm | Current - Output (Max) | Parallel 1A, Series 500mA |
| Center Tap | No |
