166F14

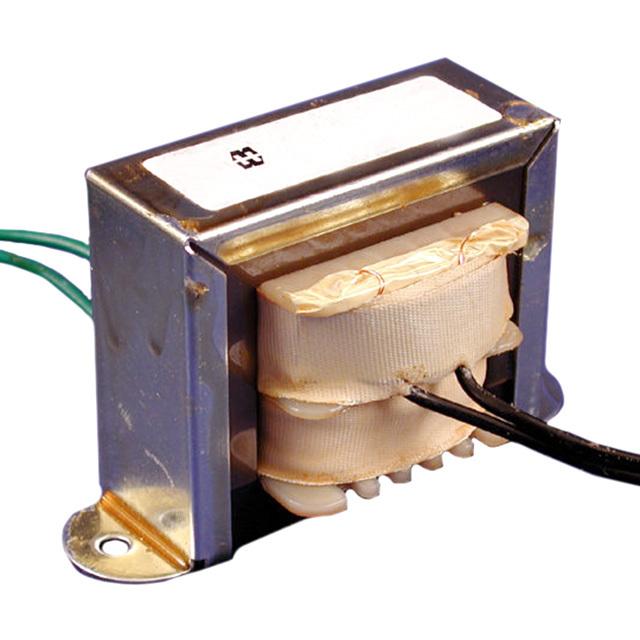

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 166F14 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 166F14 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 166F14 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR LAMINATED 3.5VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.816 | $4.431 | $4.085 | $3.946 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.877 | $3.739 | $3.60 | $3.462 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 166F14 | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | XFRMR LAMINATED 3.5VA CHAS MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9261 pcs | Data sheet | 166 Series |
| Category | Transformers | Weight | 0.4 lb (181.44g) |
| Voltage - Secondary (Full Load) | 14V | Voltage - Primary | 115V |
| Voltage - Isolation | 2000Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 60.45mm L x 34.29mm W |
| Series | 166 | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 3.5 VA |
| Other Names | 166F14-ND HM4383 |
Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 36.32mm |
| Current - Output (Max) | 250mA | Center Tap | Yes |
