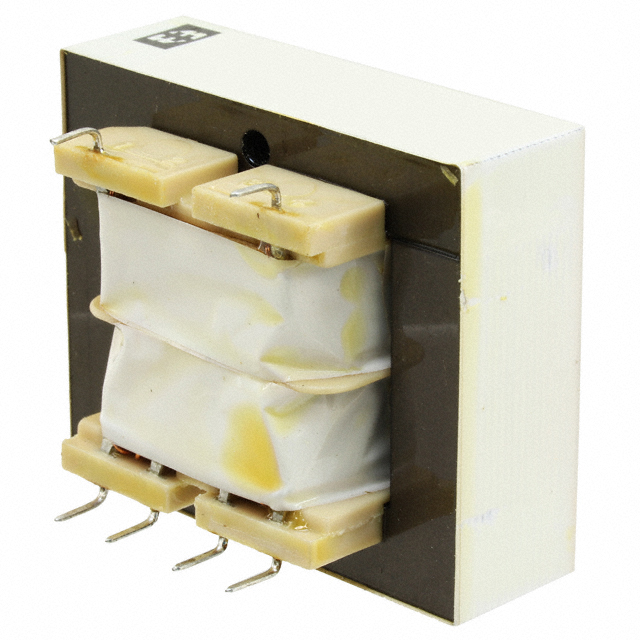

164H16
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 164H16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 164H16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 164H16 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR LAMINATED 20VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.801 | $4.419 | $4.074 | $3.936 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.867 | $3.729 | $3.591 | $3.453 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 164H16 | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | XFRMR LAMINATED 20VA THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8889 pcs | Data sheet | 162, 164 Series Spec. |
| Category | Transformers | Weight | 0.8 lb (362.87g) |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V | Voltage - Primary | 115V |
| Voltage - Isolation | 2500Vrms | Type | Laminated Core |
| Termination Style | PC Pin | Size / Dimension | 57.15mm L x 47.63mm W |
| Series | 164 | Secondary Winding(s) | Dual |
| Primary Winding(s) | Single | Power - Max | 20 VA |
| Other Names | 164H16-ND HM4330 |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 36.52mm |
| Current - Output (Max) | Parallel 2.5A, Series 1.25A | Center Tap | No |
