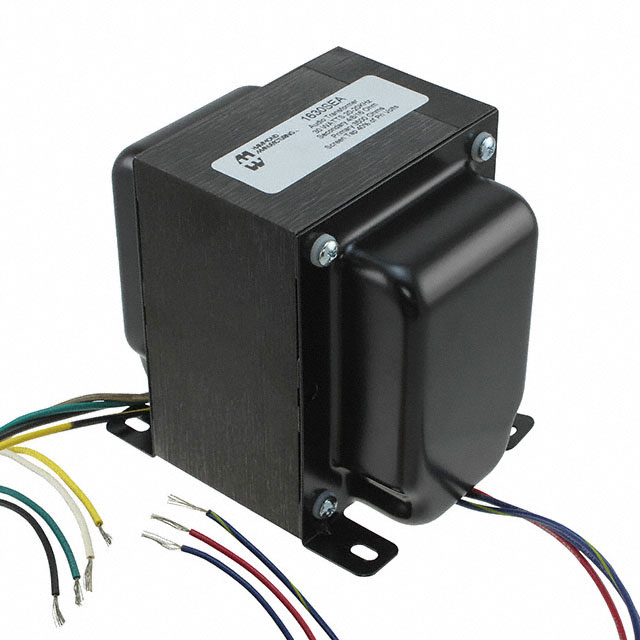

1630SEA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1630SEA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1630SEA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1630SEA |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | AUDIOPHILE TUBE OUTPUT TRANSFRMR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $53.23 | $49.428 | $47.527 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1630SEA | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | AUDIOPHILE TUBE OUTPUT TRANSFRMR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 772 pcs | Data sheet | 1627-1642 Series Spec.1630SEA Drawing |
| Category | Transformers | Weight | 11 lbs (5kg) |
| Voltage - Isolation | 2828VDC @ 1 Second | Turns Ratio - Primary:Secondary | - |
| Transformer Type | Single Ended Audiophile, Ultra-Linear - Tube Output | Termination Style | Wire Leads |
| Size / Dimension | 4.980" L x 3.750" W (126.49mm x 95.25mm) | Series | 1600 |
| Return Loss | - | Power Level | 30W |
| Packaging | Bulk | Other Names | 1630SEA-ND HM1558 |
| Operating Temperature | - | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | ±1dB |
| Impedance - Secondary (Ohms) | 4, 8, 16 | Impedance - Primary (Ohms) | 3.5k |
| Height - Seated (Max) | 4.650" (118.11mm) | Frequency Response | ±1dB |
| Frequency Range | 20Hz ~ 20kHz | DC Resistance (DCR) - Secondary | 634 mOhm |
| DC Resistance (DCR) - Primary | 110.1 Ohm | Approvals | - |
