160H56

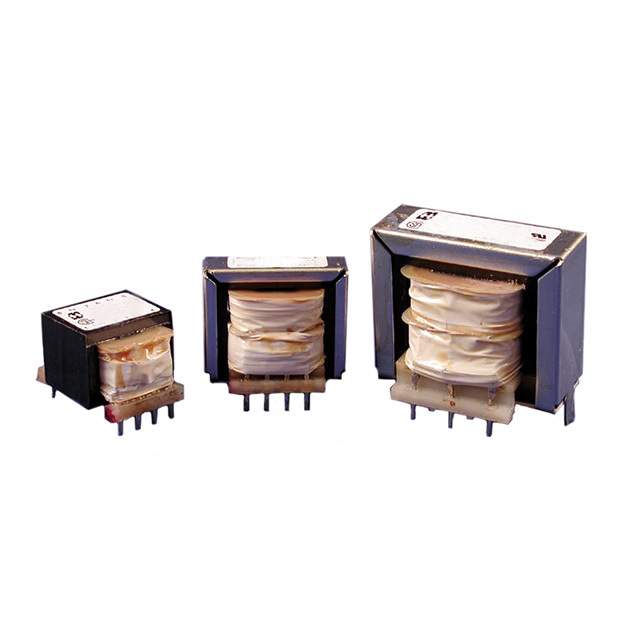

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 160H56 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 160H56 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 160H56 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR LAMINATED 24VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $7.462 | $6.583 | $6.364 | $5.706 | $5.486 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 160H56 | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | XFRMR LAMINATED 24VA THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7110 pcs | Data sheet | 160-161 Series Spec. |
| Category | Transformers | Weight | 0.79 lb (358.34g) |
| Voltage - Secondary (Full Load) | Parallel 28V, Series 56V | Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 2000Vrms | Type | Laminated Core |
| Termination Style | PC Pin | Size / Dimension | 41.40mm L x 57.15mm W |
| Series | 160 | Secondary Winding(s) | Single, Multiple Taps |
| Primary Winding(s) | Dual | Power - Max | 24 VA |
| Other Names | 160H56-ND HM4163 |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 35.05mm |
| Current - Output (Max) | Parallel 840mA, Series 420mA | Center Tap | No |
