1536D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1536D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1536D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1536D |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | FIXED IND 3.35UH 20A 10 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.403 | $1.286 | $0.842 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.748 | $0.701 | $0.678 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1536D | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | FIXED IND 3.35UH 20A 10 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50217 pcs | Data sheet | 1536 Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | Axial |
| Size / Dimension | 0.530" Dia x 1.310" L (13.46mm x 33.27mm) | Shielding | Unshielded |
| Series | 1536 | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Axial | Other Names | 1536D-ND HM3321 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Material - Core | Iron Powder | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 7.9MHz |
| Inductance | 3.35µH | Height - Seated (Max) | - |
| Frequency - Self Resonant | 45MHz | Detailed Description | 3.35µH Unshielded Wirewound Inductor 20A 10 mOhm Axial |
| DC Resistance (DCR) | 10 mOhm | Current Rating | 20A |
| Current - Saturation | - |
- Related products
- Related news
Related products
- Part#:
1536E - Manufacturers:
Hammond Manufacturing - Description:
FIXED IND 4.9UH 15A 16 MOHM TH - In Stock:
56481
- Part#:
1536T - Manufacturers:
Hammond Manufacturing - Description:
FIXED IND 100UH 2A 216 MOHM TH - In Stock:
77523
- Part#:
1536W - Manufacturers:
Hammond Manufacturing - Description:
FIXED IND 125UH 3.5A 80 MOHM TH - In Stock:
85019
- Part#:
1536S - Manufacturers:
Hammond Manufacturing - Description:
FIXED IND 68UH 5A 54 MOHM TH - In Stock:
89846
- Part#:

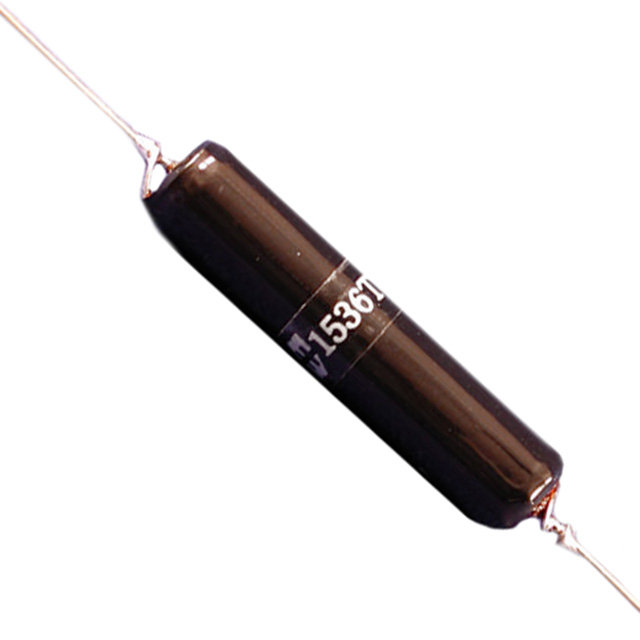

1536P - Manufacturers:
