149C

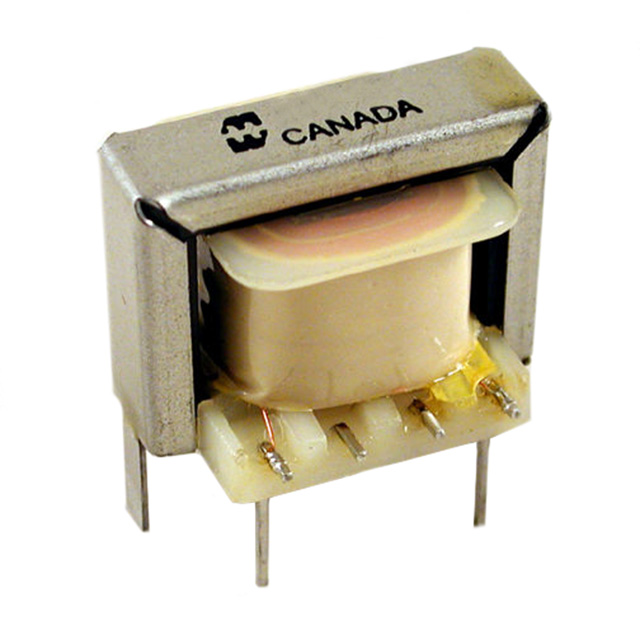

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 149C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 149C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 149C |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORM AUDIO 160 TO 20/80 IMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $7.538 | $6.653 | $6.431 | $5.766 | $5.544 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 149C | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORM AUDIO 160 TO 20/80 IMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5630 pcs | Data sheet | 149 Series Spec. |
| Category | Transformers | Weight | 0.063 lb (28.58g) |
| Voltage - Isolation | - | Turns Ratio - Primary:Secondary | - |
| Transformer Type | Economical Open Type | Termination Style | PC Pin |
| Size / Dimension | 1.060" L x 0.820" W (26.92mm x 20.83mm) | Series | 149 |
| Return Loss | - | Power Level | 200mW |
| Packaging | Bulk | Other Names | 149C-ND HM3288 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.5dB | Impedance - Secondary (Ohms) | 80, 20/20 |
| Impedance - Primary (Ohms) | 160 | Height - Seated (Max) | 0.820" (20.83mm) |
| Frequency Response | ±1dB | Frequency Range | 200Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 7 Ohm | DC Resistance (DCR) - Primary | 24 Ohm |
| Approvals | - |
