140NEX

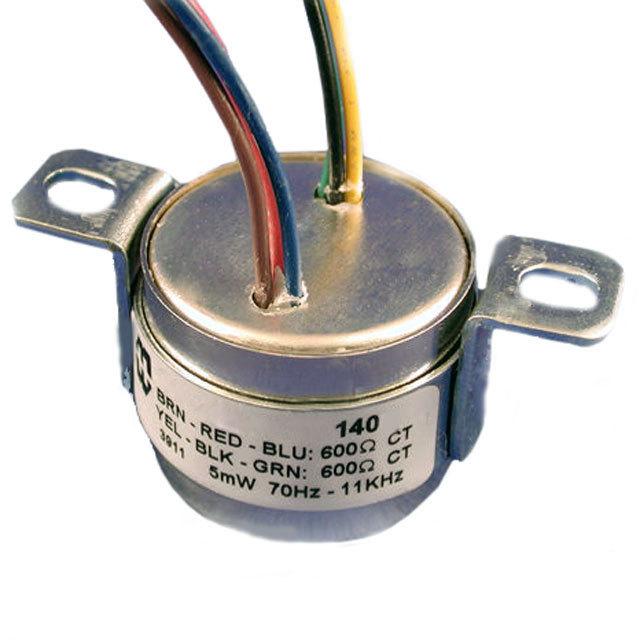

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 140NEX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 140NEX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 140NEX |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER AUDIO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $21.732 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 140NEX | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER AUDIO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1547 pcs | Data sheet | 140NEX |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 500Vrms | Turns Ratio - Primary:Secondary | 1:5.47 |
| Termination Style | Screw Terminal | Size / Dimension | 1.250" Dia (31.75mm) |
| Series | 140EX | Return Loss | 28dB Typ |
| Power Level | 10dB | Packaging | Bulk |
| Operating Temperature | - | Mounting Type | Chassis Mount |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.9dB Typ | Impedance - Secondary (Ohms) | 1.5k |
| Impedance - Primary (Ohms) | 50 | Height - Seated (Max) | 1.000" (25.40mm) |
| Frequency Response | ±1dB | Frequency Range | 20Hz ~ 20kHz |
| DC Resistance (DCR) - Secondary | 116.5 Ohm | DC Resistance (DCR) - Primary | 5.3 Ohm |
| Approvals | - |
