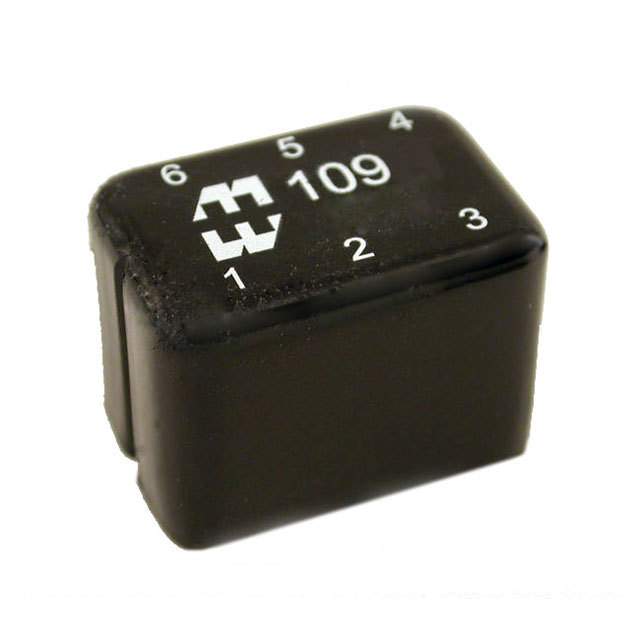

109R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 109R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 109R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 109R |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER AUDIO 10KCT/1.5KCT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $10.925 | $9.64 | $9.318 | $8.354 | $8.033 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 109R | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER AUDIO 10KCT/1.5KCT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4604 pcs | Data sheet | 109R Datasheet109 Series Spec |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 100VRMS | Turns Ratio - Primary:Secondary | 5.16:1 |
| Transformer Type | Miniature Epoxy Potted | Termination Style | PC Pin |
| Size / Dimension | 1.315" L x 0.930" W (33.40mm x 23.62mm) | Series | 109 |
| Return Loss | - | Power Level | 2W |
| Packaging | Bulk | Other Names | 109R-ND HM2397 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | 1.5kCT |
| Impedance - Primary (Ohms) | 10kCT | Height - Seated (Max) | 0.920" (23.37mm) |
| Frequency Response | ±1.5dB | Frequency Range | 300Hz ~ 50kHz |
| DC Resistance (DCR) - Secondary | 58 Ohm | DC Resistance (DCR) - Primary | 384 Ohm |
| Approvals | - |
