101P

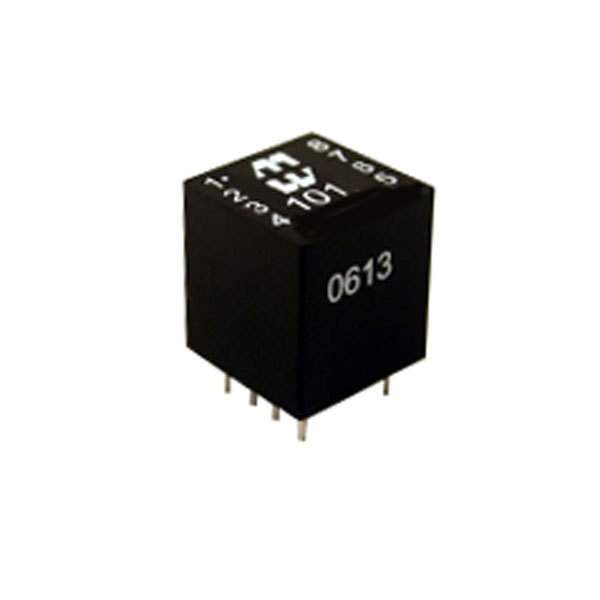

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 101P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 101P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 101P |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER AUDIO 300CT/50CT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $6.353 | $5.604 | $5.417 | $4.857 | $4.67 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 101P | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER AUDIO 300CT/50CT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7829 pcs | Data sheet | 101 Series |
| Category | Transformers | Weight | 0.01 lb (4.54g) |
| Voltage - Isolation | - | Turns Ratio - Primary:Secondary | - |
| Transformer Type | Miniature Epoxy Potted | Termination Style | PC Pin |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Series | 101 |
| Return Loss | - | Power Level | 100mW |
| Packaging | Bulk | Other Names | 101P-ND HM2346 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | 50CT |
| Impedance - Primary (Ohms) | 300CT | Height - Seated (Max) | 0.480" (12.19mm) |
| Frequency Response | ±0.5dB | Frequency Range | 200Hz ~ 100kHz |
| DC Resistance (DCR) - Secondary | 4.8 Ohm | DC Resistance (DCR) - Primary | 20.4 Ohm |
| Approvals | - |
