Home > Products > Circuit Protection > TVS - Varistors, MOVs > V480SM7

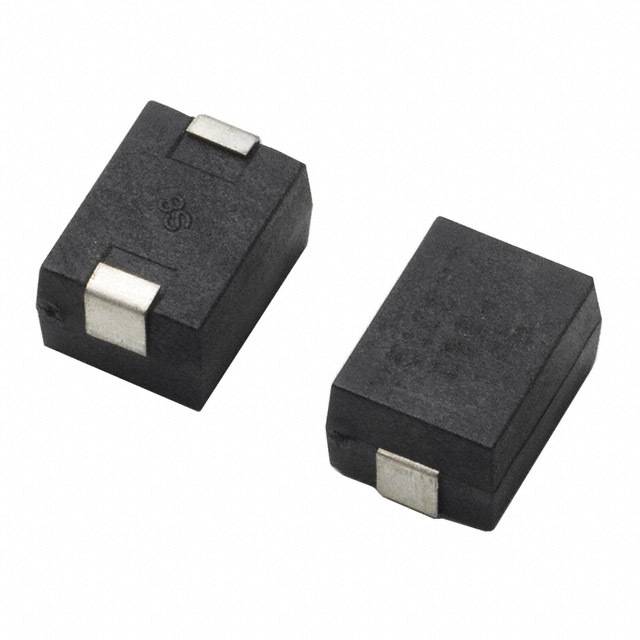

V480SM7

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V480SM7 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V480SM7
Manufacturer	Hamlin / Littelfuse
Description	VARISTOR 747.5V 1.2KA 2SMD JLEAD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 54496 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
Reference Price (In US Dollars)	$0.859	$0.775	$0.692	$0.623	$0.554

Product parameter
Data sheet

Product parameter

Part Number	V480SM7	Manufacturer	Hamlin / Littelfuse
Description	VARISTOR 747.5V 1.2KA 2SMD JLEAD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54496 pcs	Data sheet	SM7 Varistor Series Surge-Protective Devices Certification
Category	Circuit Protection	Varistor Voltage (Typ)	747.5V
Varistor Voltage (Min)	670V	Varistor Voltage (Max)	825V
Series	SM7	Packaging	Original-Reel®
Package / Case	2-SMD, J-Lead	Other Names	F3556DKR
Operating Temperature	-40°C ~ 85°C (TA)	Number of Circuits	1
Mounting Type	Surface Mount, MLCV	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Maximum DC Volts	640V	Maximum AC Volts	480V
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Energy	35J
Detailed Description	747.5V 1.2kA Varistor 1 Circuit Surface Mount, MLCV 2-SMD, J-Lead	Current - Surge	1.2kA
Capacitance @ Frequency	50pF @ 1MHz
