Home > Products > Circuit Protection > TVS - Varistors, MOVs > V275SM20

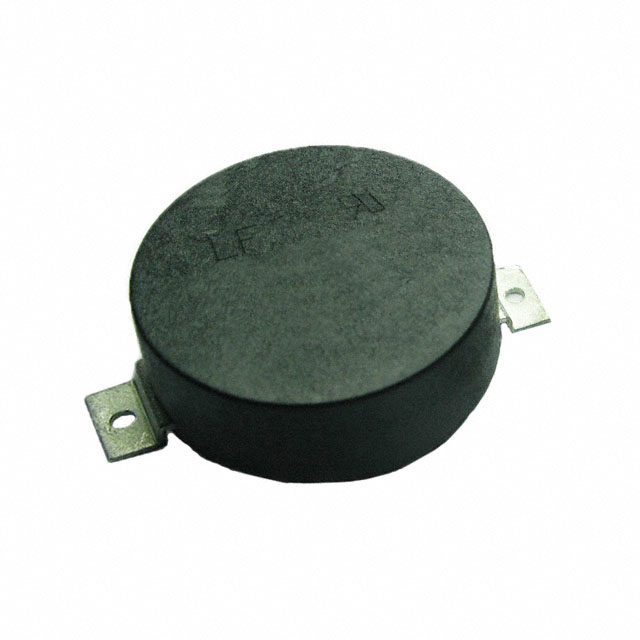

V275SM20

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V275SM20 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V275SM20
Manufacturer	Hamlin / Littelfuse
Description	VARISTOR 431V 6.5KA DISC 20MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	540 pcs	1080 pcs	2592 pcs	5076 pcs
~~In Stock~~ 65926 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	108 pcs	324 pcs
	$1.092	$0.975	$0.877	$0.799	$0.721
	$0.647	$0.546	$0.519	$0.499

Product parameter
Data sheet

Product parameter

Part Number	V275SM20	Manufacturer	Hamlin / Littelfuse
Description	VARISTOR 431V 6.5KA DISC 20MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65926 pcs	Data sheet	SM20 Varistor Series
Category	Circuit Protection	Varistor Voltage (Typ)	431V
Varistor Voltage (Min)	389V	Varistor Voltage (Max)	473V
Series	SM20	Packaging	Tray
Package / Case	Disc 20mm, Tabbed SMD	Other Names	F3547
Operating Temperature	-40°C ~ 85°C (TA)	Number of Circuits	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Maximum DC Volts	369V	Maximum AC Volts	275V
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Energy	140J	Detailed Description	431V 6.5kA Varistor 1 Circuit Surface Mount Disc 20mm, Tabbed SMD
Current - Surge	6.5kA	Capacitance @ Frequency	900pF @ 1MHz
