Home > Products > Circuit Protection > TVS - Diodes > TPSMF4L8.5A

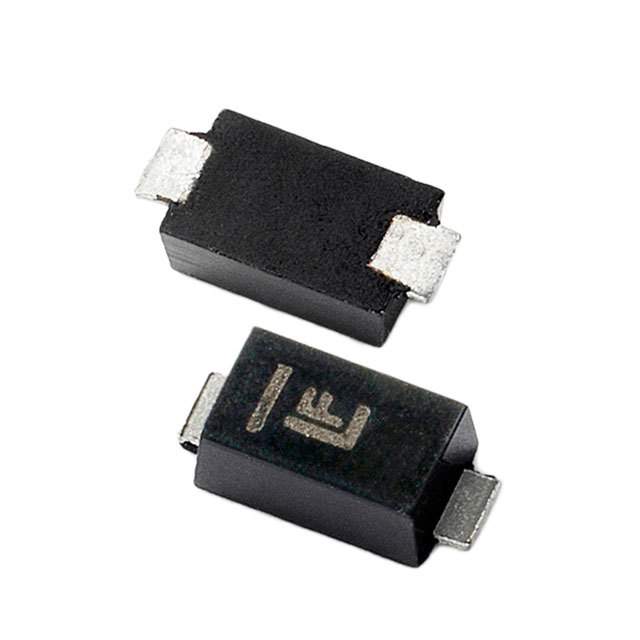

TPSMF4L8.5A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPSMF4L8.5A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TPSMF4L8.5A
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 8.5V 14.4V SOD123FL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 507769 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs
Reference Price (In US Dollars)	$0.053	$0.05	$0.046	$0.046

Product parameter
Data sheet

Product parameter

Part Number	TPSMF4L8.5A	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 8.5V 14.4V SOD123FL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	507769 pcs	Data sheet	TPSMF4L Series Datasheet
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	8.5V
Voltage - Clamping (Max) @ Ipp	14.4V	Voltage - Breakdown (Min)	9.44V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	SOD-123FL	Series	Automotive, AEC-Q101, TPSMF4L
Power Line Protection	No	Power - Peak Pulse	400W (Typ)
Packaging	Tape & Reel (TR)	Package / Case	SOD-123F
Other Names	F7532TR	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	25.7A	Capacitance @ Frequency	-
Applications	Automotive
