Home > Products > Circuit Protection > TVS - Diodes > TPSMC20CA

TPSMC20CA

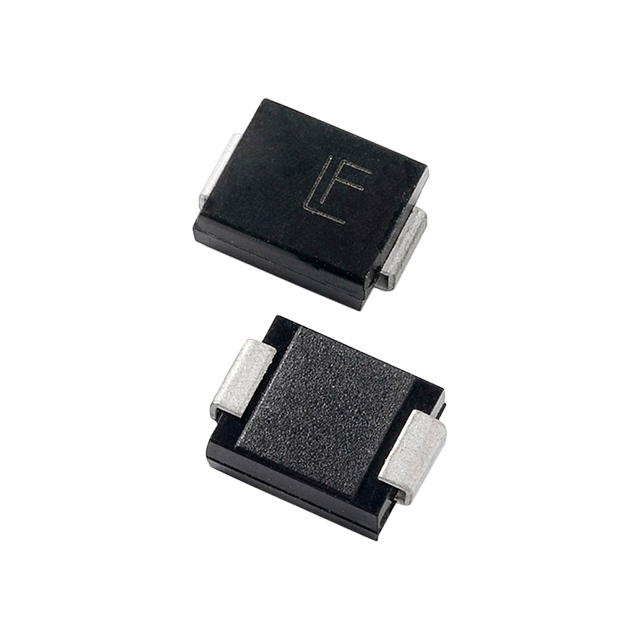

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPSMC20CA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TPSMC20CA
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 17.1V 27.7V DO214AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 211215 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs
Reference Price (In US Dollars)	$0.12	$0.111	$0.11

Product parameter
Data sheet

Product parameter

Part Number	TPSMC20CA	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 17.1V 27.7V DO214AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	211215 pcs	Data sheet	TPSMC Series
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	17.1V
Voltage - Clamping (Max) @ Ipp	27.7V	Voltage - Breakdown (Min)	19V
Type	Zener	Supplier Device Package	DO-214AB (SMCJ)
Series	Automotive, AEC-Q101, TPSMC	Power Line Protection	No
Power - Peak Pulse	1500W (1.5kW)	Packaging	Tape & Reel (TR)
Package / Case	DO-214AB, SMC	Other Names	F6524TR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	54.9A
Capacitance @ Frequency	-	Bidirectional Channels	1
Applications	Automotive
