Home > Products > Circuit Protection > TVS - Diodes > TPSMA6L7.5A

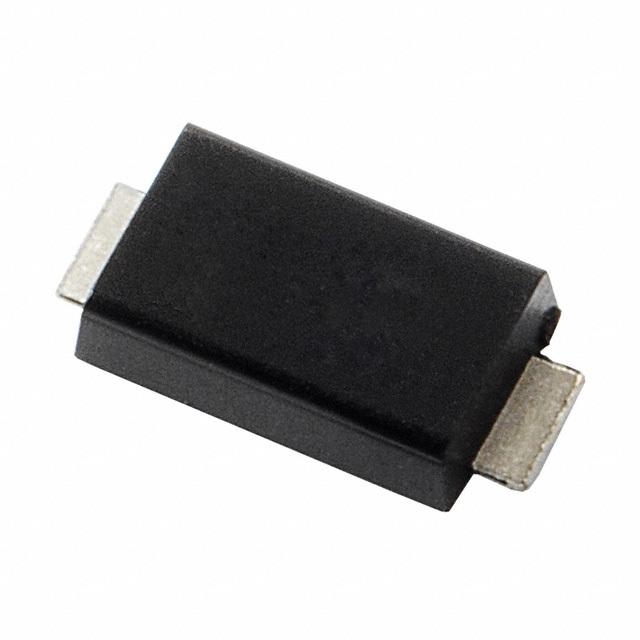

TPSMA6L7.5A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPSMA6L7.5A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TPSMA6L7.5A
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 7.5V 12.9V DO221AC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 297649 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$0.195	$0.165	$0.145	$0.124
	$0.107	$0.091	$0.07

Product parameter
Data sheet

Product parameter

Part Number	TPSMA6L7.5A	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 7.5V 12.9V DO221AC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	297649 pcs	Data sheet	TPSMA6L Series
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	7.5V
Voltage - Clamping (Max) @ Ipp	12.9V	Voltage - Breakdown (Min)	8.33V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	DO-221AC	Series	Automotive, AEC-Q101, TPSMA6L
Power Line Protection	No	Power - Peak Pulse	600W
Packaging	Original-Reel®	Package / Case	DO-221AC, SMA Flat Leads
Other Names	F6177DKR	Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	46.6A	Capacitance @ Frequency	-
Applications	Automotive
