SP36-01WTG-C-HV

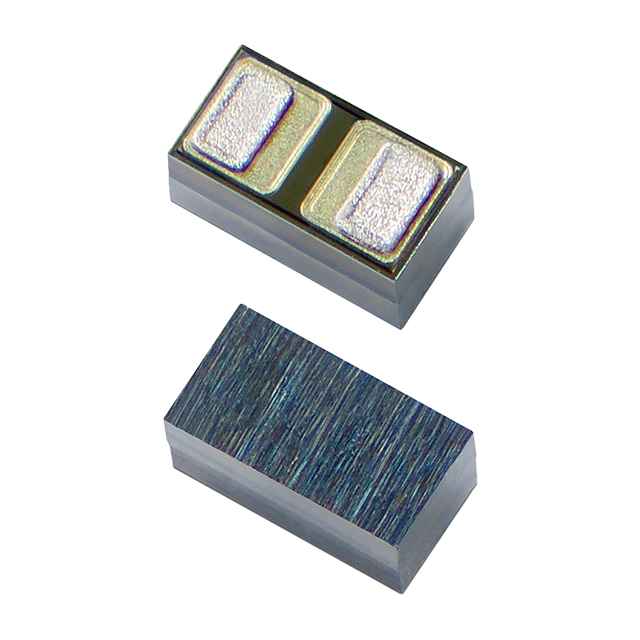

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SP36-01WTG-C-HV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SP36-01WTG-C-HV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SP36-01WTG-C-HV |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | TVS DIODE 36V 48V 2FLIPCHIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.158 | $0.144 | $0.104 | $0.081 | $0.051 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.043 | $0.029 | $0.026 | $0.023 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SP36-01WTG-C-HV | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | TVS DIODE 36V 48V 2FLIPCHIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1032098 pcs | Data sheet | SPxx Series Datasheet |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 36V (Max) |
| Voltage - Clamping (Max) @ Ipp | 48V | Voltage - Breakdown (Min) | 40V |
| Type | Zener | Supplier Device Package | 2-FlipChip |
| Series | SPXX, SPA® | Power Line Protection | No |
| Power - Peak Pulse | 100W | Packaging | Original-Reel® |
| Package / Case | 2-XFDFN, FCDFN | Other Names | F6964DKR |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Capacitance @ Frequency | 10pF @ 1MHz | Bidirectional Channels | 1 |
| Applications | General Purpose |
