Home > Products > Circuit Protection > TVS - Diodes > SP3422-04UTG

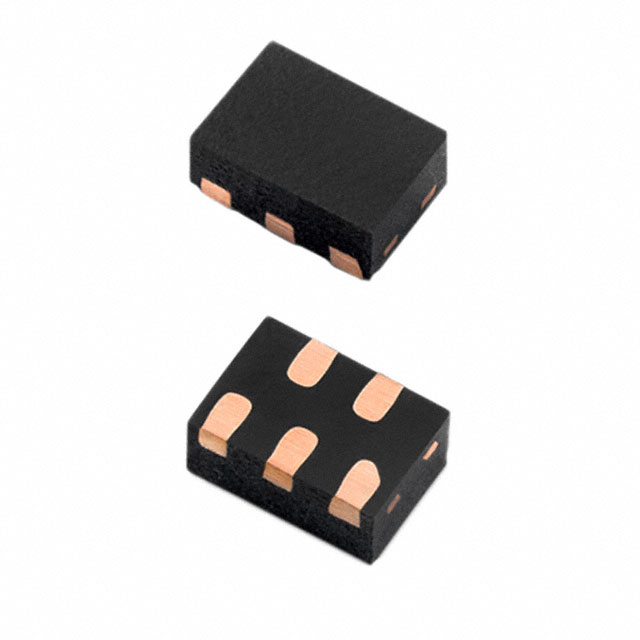

SP3422-04UTG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SP3422-04UTG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SP3422-04UTG
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 5V 16.7V 5DFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 468703 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$0.148	$0.117	$0.098	$0.08
	$0.066	$0.055	$0.041

Product parameter
Data sheet

Product parameter

Part Number	SP3422-04UTG	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 5V 16.7V 5DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	468703 pcs	Data sheet	SP3422 Series Datasheet
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	16.7V (Typ)	Voltage - Breakdown (Min)	-
Unidirectional Channels	4	Type	Steering (Rail to Rail)
Supplier Device Package	5-DFN (1x0.6)	Series	SP3422, SPA®
Power Line Protection	Yes	Power - Peak Pulse	-
Packaging	Cut Tape (CT)	Package / Case	5-XFDFN
Other Names	F10383CT	Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	2A (8/20µs)	Capacitance @ Frequency	0.2pF @ 3GHz
Applications	USB
