Home > Products > Circuit Protection > TVS - Diodes > SP1015-04WTG

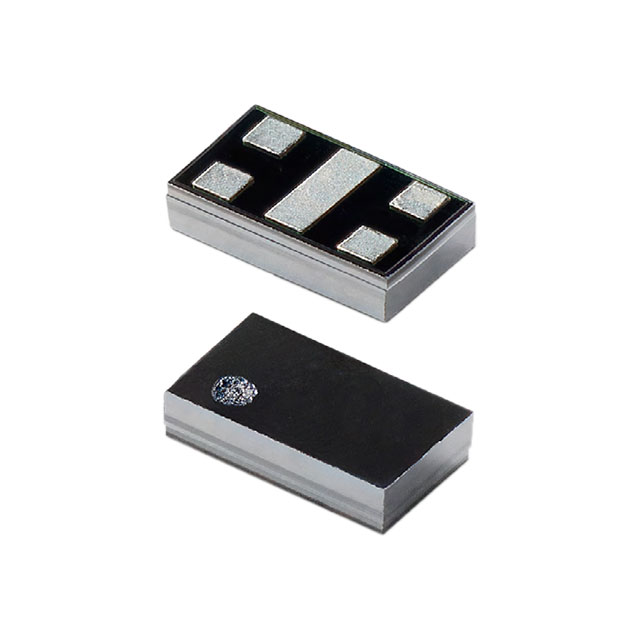

SP1015-04WTG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SP1015-04WTG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SP1015-04WTG
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 5V 12V 4FLIPCHIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 167876 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$0.31	$0.27	$0.239	$0.208
	$0.181	$0.154	$0.123	$0.112

Product parameter
Data sheet

Product parameter

Part Number	SP1015-04WTG	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 5V 12V 4FLIPCHIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	167876 pcs	Data sheet	SP1015 Series Datasheet
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	12V	Voltage - Breakdown (Min)	5.5V
Type	Zener	Supplier Device Package	4-FlipChip (0.95 x 0.55)
Series	SP1015, SPA®	Power Line Protection	No
Power - Peak Pulse	-	Packaging	Cut Tape (CT)
Package / Case	4-XFDFN Exposed Pad	Other Names	F6751CT
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Capacitance @ Frequency	5pF @ 1MHz	Bidirectional Channels	4
Applications	General Purpose
