SP1004-04VTG

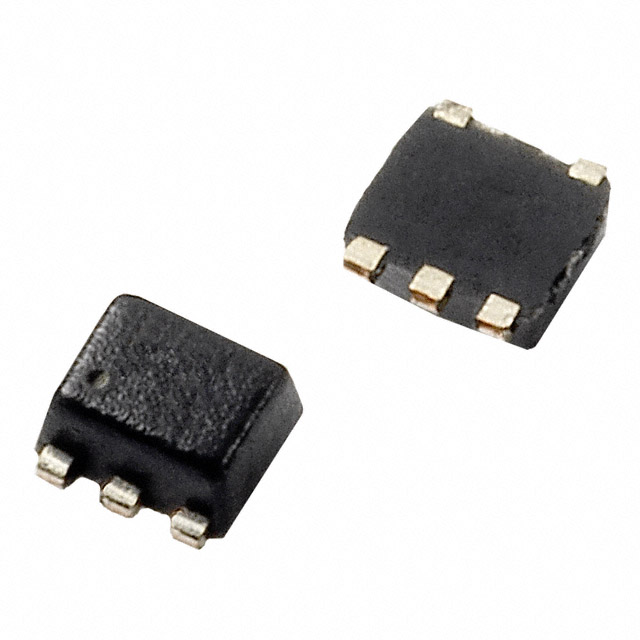

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SP1004-04VTG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SP1004-04VTG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SP1004-04VTG |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | TVS DIODE 6V 12V SOT953 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.246 | $0.208 | $0.182 | $0.156 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.135 | $0.114 | $0.088 | $0.081 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SP1004-04VTG | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | TVS DIODE 6V 12V SOT953 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 289566 pcs | Data sheet | SP1004 Series |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) | Voltage - Breakdown (Min) | 8V |
| Type | Zener | Supplier Device Package | SOT-953 |
| Series | SP1004, SPA® | Power Line Protection | No |
| Power - Peak Pulse | - | Packaging | Original-Reel® |
| Package / Case | SOT-953 | Other Names | F3502DKR |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Capacitance @ Frequency | - | Bidirectional Channels | 4 |
| Applications | General Purpose |
