Home > Products > Circuit Protection > TVS - Diodes > SMF7.5A

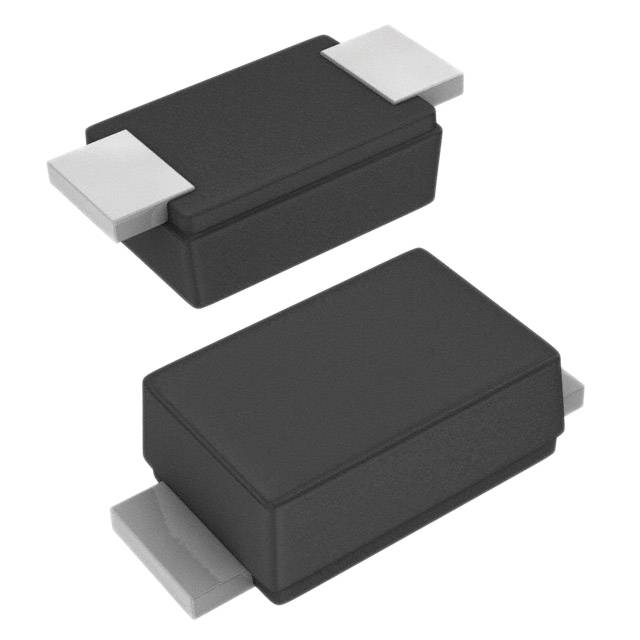

SMF7.5A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMF7.5A with confidence from Components-World.HK, 1 Year Warranty

Dowload SMF7.5A Details in PDF

Request a Quote

Part Number	SMF7.5A
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 7.5V 12.9V SOD123F
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 458399 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$0.176	$0.137	$0.116	$0.094
	$0.078	$0.065	$0.048

Product parameter
Data sheet

Product parameter

Part Number	SMF7.5A	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 7.5V 12.9V SOD123F	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	458399 pcs	Data sheet	SMF Series Datasheet
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	7.5V
Voltage - Clamping (Max) @ Ipp	12.9V	Voltage - Breakdown (Min)	8.33V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	SOD-123F	Series	SMF
Power Line Protection	No	Power - Peak Pulse	200W
Packaging	Cut Tape (CT)	Package / Case	SOD-123F
Other Names	F5752CT	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	15.5A	Capacitance @ Frequency	-
Applications	General Purpose
