Home > Products > Circuit Protection > TVS - Diodes > SMDJ36A-T7

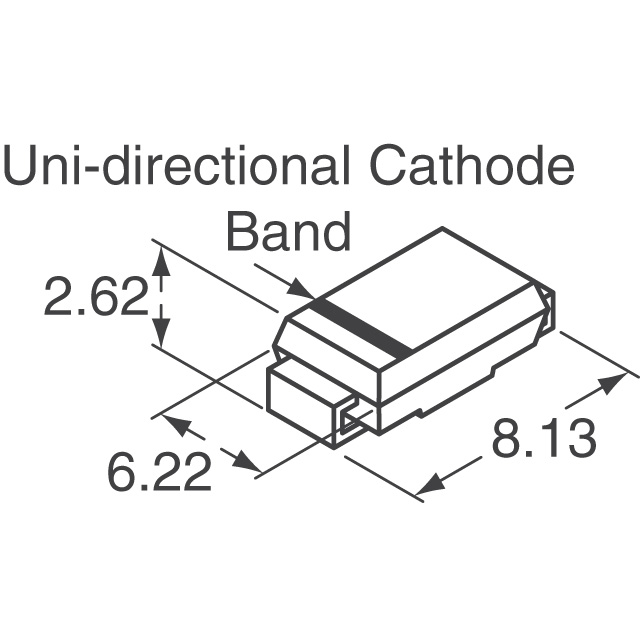

SMDJ36A-T7

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMDJ36A-T7 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SMDJ36A-T7
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 36VWM 58.1VC 214AB
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant

~~In Stock~~ 87802 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
Reference Price (In US Dollars)	$0.372	$0.331	$0.299	$0.261	$0.229

Product parameter
Data sheet

Product parameter

Part Number	SMDJ36A-T7	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 36VWM 58.1VC 214AB	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	87802 pcs	Data sheet	SMDJ Series Datasheet
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	36V
Voltage - Clamping (Max) @ Ipp	58.1V	Voltage - Breakdown (Min)	40V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	DO-214AB (SMCJ)	Series	SMDJ
Power Line Protection	No	Power - Peak Pulse	3000W (3kW)
Packaging	Original-Reel®	Package / Case	DO-214AB, SMC
Other Names	SMDJ36A-T7DKR	Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Current - Peak Pulse (10/1000µs)	51.6A	Capacitance @ Frequency	-
Applications	General Purpose
