Home > Products > Circuit Protection > PTC Resettable Fuses > RXEF250K

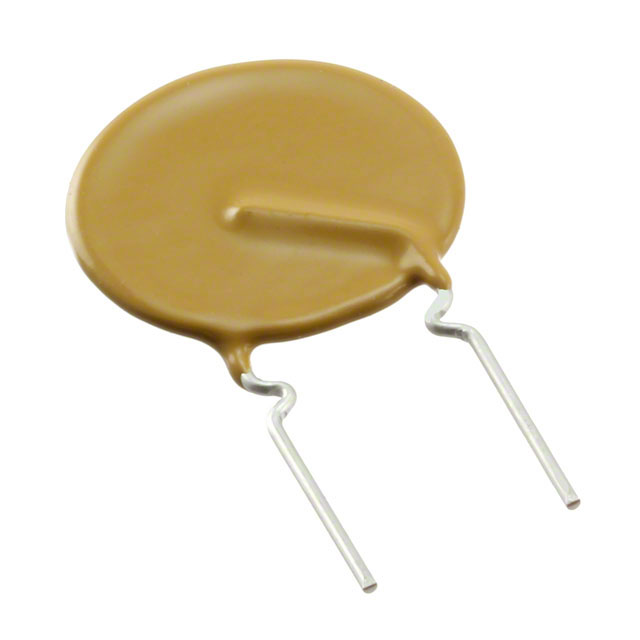

RXEF250K

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RXEF250K with confidence from Components-World.HK, 1 Year Warranty

Dowload RXEF250K Details in PDF

Request a Quote

Part Number	RXEF250K
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 72V 2.5A RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 196965 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.246	$0.237	$0.23	$0.194	$0.161
	$0.146	$0.124	$0.11	$0.099

Product parameter
Data sheet

Product parameter

Part Number	RXEF250K	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 72V 2.5A RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	196965 pcs	Data sheet	PolySwitch, Radial-leaded Catalog RXEF250K Spec
Category	Circuit Protection	Voltage - Max	72V
Type	Polymeric	Time to Trip	15.6s
Thickness (Max)	-	Size / Dimension	0.785" Dia x 0.118" T (19.93mm x 3.00mm)
Series	PolySwitch®, RXEF	Resistance - Post Trip (R1) (Max)	130 mOhms
Resistance - Initial (Ri) (Min)	50 mOhms	Ratings	-
Packaging	Bulk	Package / Case	Radial, Disc
Other Names	RF2716-000 RXEF250KHF	Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	10 Weeks	Lead Spacing	0.400" (10.15mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	1.032" (26.20mm)
Detailed Description	Polymeric PTC Resettable Fuse 72V 2.5A Ih Through Hole Radial, Disc	Current - Trip (It)	5A
Current - Max	40A	Current - Hold (Ih) (Max)	2.5A
Approvals	CQC, CSA, TUV, UL
