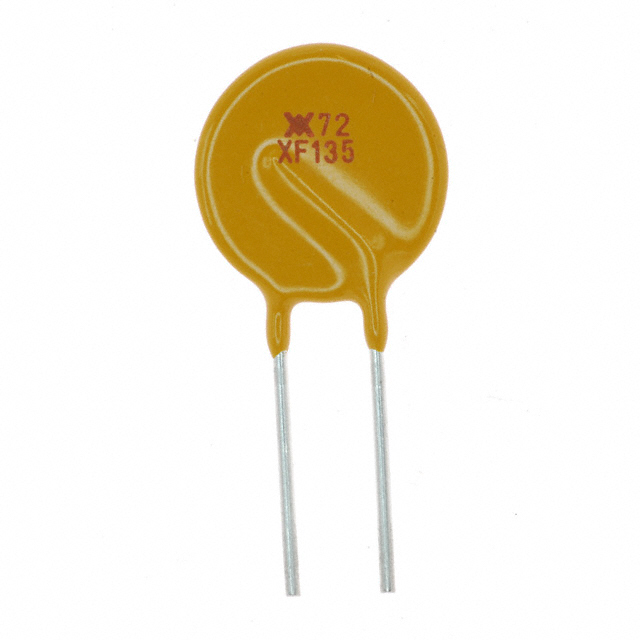

RXEF135-AP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RXEF135-AP with confidence from Components-World.HK, 1 Year Warranty
Dowload RXEF135-AP Details in PDFSee Product Specifications for product details.
Buy RXEF135-AP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RXEF135-AP |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 72V 1.35A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.082 | $0.077 | $0.075 | $0.074 | $0.071 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RXEF135-AP | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 72V 1.35A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 325117 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRXEF135 Spec |
| Category | Circuit Protection | Voltage - Max | 72V |
| Type | Polymeric | Time to Trip | 9.6s |
| Thickness (Max) | - | Size / Dimension | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) |
| Series | PolySwitch®, RXEF | Resistance - Post Trip (R1) (Max) | 300 mOhms |
| Resistance - Initial (Ri) (Min) | 120 mOhms | Ratings | - |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Disc |
| Other Names | F40009-000 F40009-000-ND RF2699-000 RXEF135-AP-ND RXEF135-APTB |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.200" (5.08mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.752" (19.10mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 72V 1.35A Ih Through Hole Radial, Disc | Current - Trip (It) | 2.7A |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 1.35A |
| Approvals | CQC, CSA, TUV, UL |
