RXEF090S

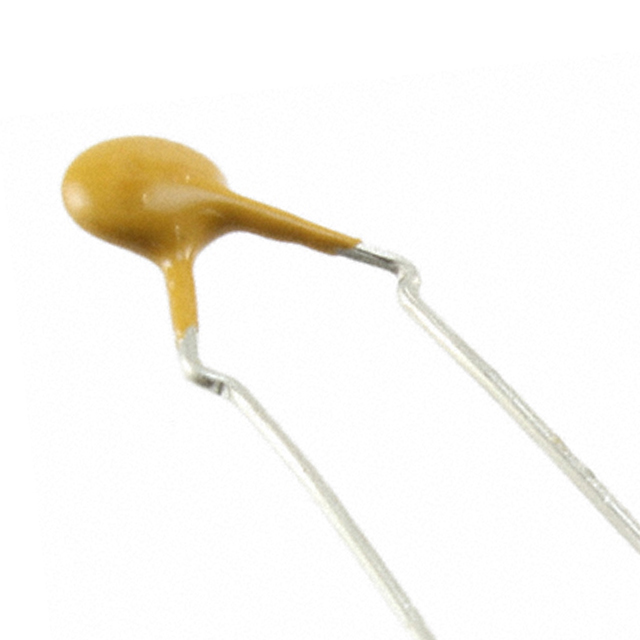

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RXEF090S with confidence from Components-World.HK, 1 Year Warranty
Dowload RXEF090S Details in PDFSee Product Specifications for product details.
Buy RXEF090S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RXEF090S |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 72V 900MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.171 | $0.165 | $0.159 | $0.134 | $0.111 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.101 | $0.086 | $0.076 | $0.068 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RXEF090S | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 72V 900MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 330283 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRXEF090S Spec |
| Category | Circuit Protection | Voltage - Max | 72V |
| Type | Polymeric | Time to Trip | 7.2s |
| Thickness (Max) | - | Size / Dimension | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) |
| Series | PolySwitch®, RXEF | Resistance - Post Trip (R1) (Max) | 470 mOhms |
| Resistance - Initial (Ri) (Min) | 200 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF2682-000 RXEF090SHF |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.622" (15.80mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 72V 900mA Ih Through Hole Radial, Disc | Current - Trip (It) | 1.8A |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 900mA |
| Approvals | CQC, CSA, TUV, UL |
