RXEF030-AP

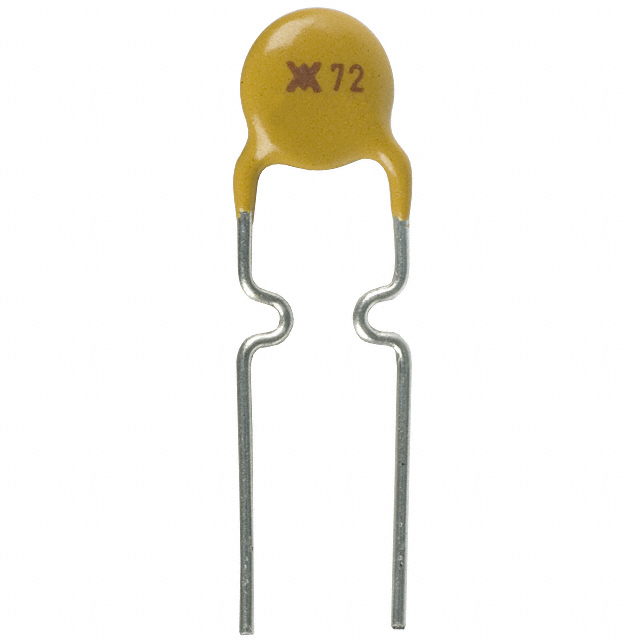

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RXEF030-AP with confidence from Components-World.HK, 1 Year Warranty
Dowload RXEF030-AP Details in PDFSee Product Specifications for product details.
Buy RXEF030-AP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RXEF030-AP |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 72V 300MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.063 | $0.062 | $0.06 | $0.058 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RXEF030-AP | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 72V 300MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 405894 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRXEF030 Spec |
| Category | Circuit Protection | Voltage - Max | 72V |
| Type | Polymeric | Time to Trip | 3s |
| Thickness (Max) | - | Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Series | PolySwitch®, RXEF | Resistance - Post Trip (R1) (Max) | 2.1 Ohms |
| Resistance - Initial (Ri) (Min) | 880 mOhms | Ratings | - |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Disc |
| Other Names | D27145-000 RF2656-000 RXEF030-AP-ND RXEF030-APTB |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.500" (12.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 72V 300mA Ih Through Hole Radial, Disc | Current - Trip (It) | 600mA |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 300mA |
| Approvals | CQC, CSA, TUV, UL |
