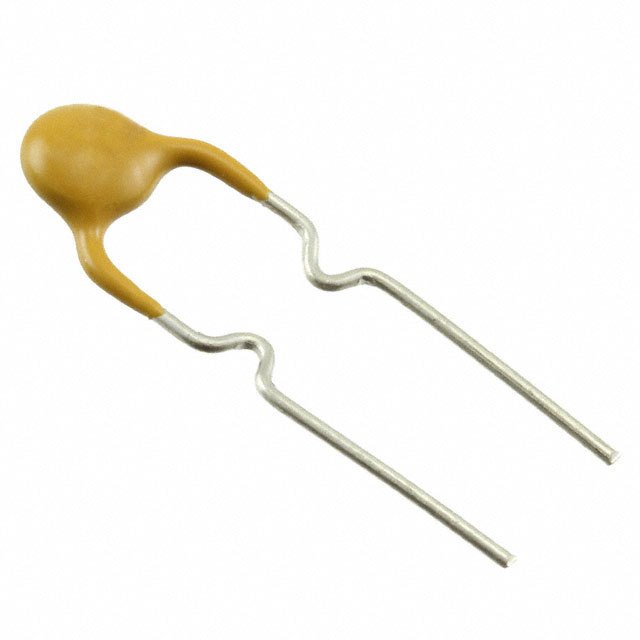

RXEF020
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RXEF020 with confidence from Components-World.HK, 1 Year Warranty
Dowload RXEF020 Details in PDFSee Product Specifications for product details.
Buy RXEF020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RXEF020 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 72V 200MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.136 | $0.131 | $0.127 | $0.107 | $0.089 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.081 | $0.068 | $0.06 | $0.054 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RXEF020 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 72V 200MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 427813 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRXEF020 Spec |
| Category | Circuit Protection | Voltage - Max | 72V |
| Type | Polymeric | Time to Trip | 2.2s |
| Thickness (Max) | - | Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Series | PolySwitch®, RXEF | Resistance - Post Trip (R1) (Max) | 4.4 Ohms |
| Resistance - Initial (Ri) (Min) | 1.83 Ohms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF2564-000 RXEF020HF |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.461" (11.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 72V 200mA Ih Through Hole Radial, Disc | Current - Trip (It) | 400mA |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 200mA |
| Approvals | CQC, CSA, TUV, UL |
