RGEF500

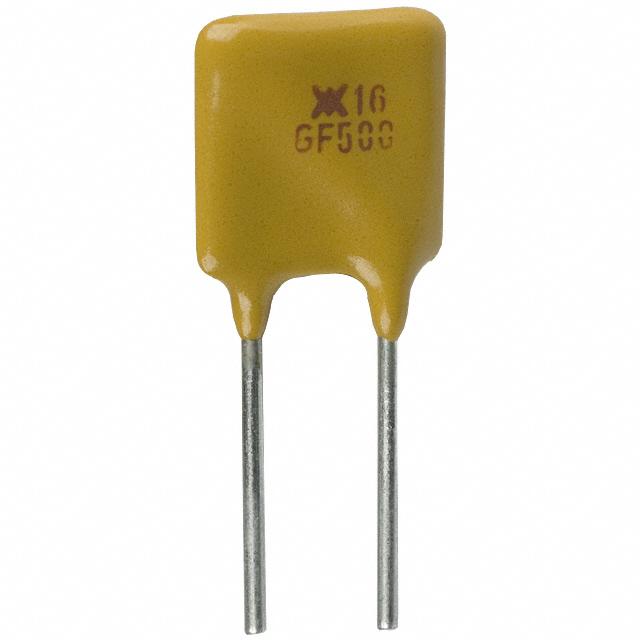

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGEF500 with confidence from Components-World.HK, 1 Year Warranty
Dowload RGEF500 Details in PDFSee Product Specifications for product details.
Buy RGEF500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RGEF500 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 5A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.181 | $0.177 | $0.166 | |||
| 500 pcs | 1000 pcs | 2000 pcs | |||
| $0.126 | $0.112 | $0.087 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RGEF500 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 5A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 229745 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRGEF500 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 2s |
| Thickness (Max) | - | Size / Dimension | 0.390" L x 0.098" W (9.90mm x 2.50mm) |
| Series | PolySwitch®, RGEF | Resistance - Post Trip (R1) (Max) | 34 mOhms |
| Resistance - Initial (Ri) (Min) | 15 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | A50291-000 | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Lead Spacing | 0.199" (5.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.563" (14.30mm) | Detailed Description | Polymeric PTC Resettable Fuse 16V 5A Ih Through Hole Radial, Disc |
| Current - Trip (It) | 8.5A | Current - Max | 100A |
| Current - Hold (Ih) (Max) | 5A | Approvals | CSA, TUV, UL |
