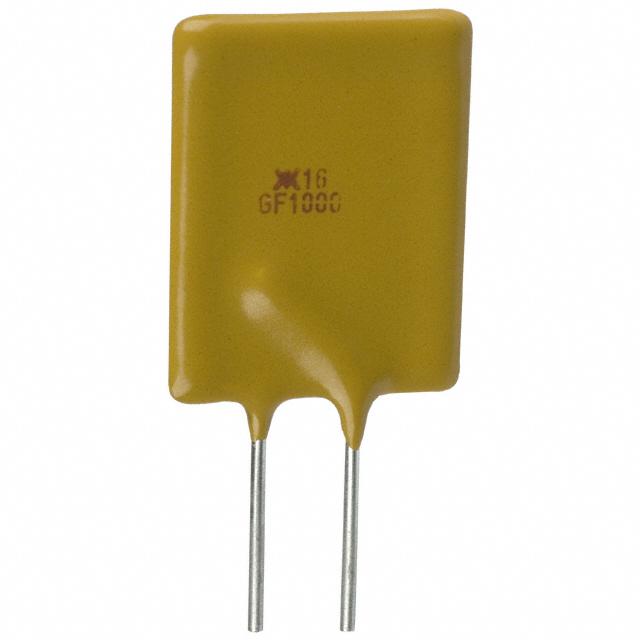

RGEF1000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGEF1000 with confidence from Components-World.HK, 1 Year Warranty
Dowload RGEF1000 Details in PDFSee Product Specifications for product details.
Buy RGEF1000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RGEF1000 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 10A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.31 | $0.285 | $0.259 | $0.202 | $0.174 | |
| 5000 pcs | 10000 pcs | 50000 pcs | 100000 pcs | ||
| $0.159 | $0.134 | $0.129 | $0.124 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RGEF1000 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 10A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 171570 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRGEF1000 Spec |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 6s |
| Thickness (Max) | - | Size / Dimension | 0.630" L x 0.098" W (16.00mm x 2.50mm) |
| Series | PolySwitch®, RGEF | Resistance - Post Trip (R1) (Max) | 10.2 mOhms |
| Resistance - Initial (Ri) (Min) | 4 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | C35183-000 | Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Lead Spacing | 0.199" (5.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.992" (25.20mm) | Detailed Description | Polymeric PTC Resettable Fuse 16V 10A Ih Through Hole Radial, Disc |
| Current - Trip (It) | 17A | Current - Max | 100A |
| Current - Hold (Ih) (Max) | 10A | Approvals | CSA, TUV, UL |
