PICOSMDC020S-2

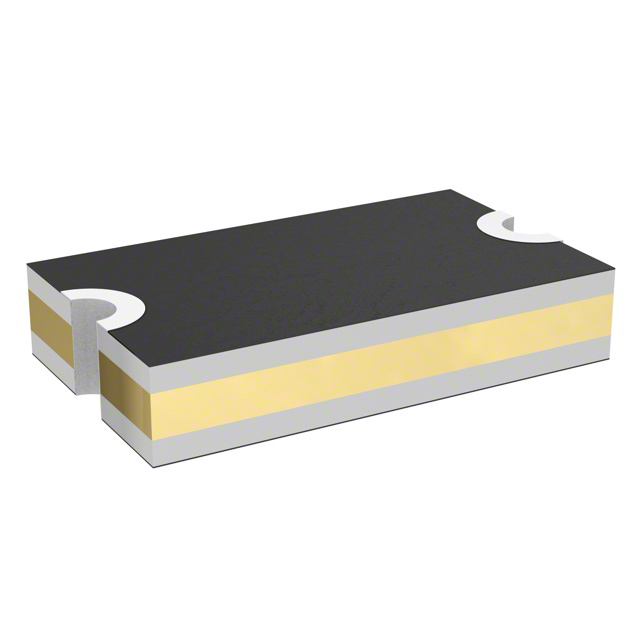

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PICOSMDC020S-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload PICOSMDC020S-2 Details in PDFSee Product Specifications for product details.
Buy PICOSMDC020S-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PICOSMDC020S-2 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 9V 200MA 0805 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | ||
|---|---|---|---|---|---|
| $0.097 | $0.095 | $0.092 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PICOSMDC020S-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 9V 200MA 0805 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 214626 pcs | Data sheet | picoSMDC020S Spec SheetPolySwitch, picoSMD Catalog |
| Category | Circuit Protection | Voltage - Max | 9V |
| Type | Polymeric | Time to Trip | 100ms |
| Thickness (Max) | 0.027" (0.68mm) | Size / Dimension | 0.083" L x 0.055" W (2.10mm x 1.40mm) |
| Series | PolySwitch®, picoSMD | Resistance - Post Trip (R1) (Max) | 3.2 Ohms |
| Resistance - Initial (Ri) (Min) | 750 mOhms | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 0805 (2012 Metric), Concave |
| Other Names | PICOSMDC020S-2-ND PICOSMDC020S-2TR RF1691-000 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 9V 200mA Ih Surface Mount 0805 (2012 Metric), Concave | Current - Trip (It) | 470mA |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 200mA |
| Approvals | CSA, TUV, UL |
