Home > Products > Circuit Protection > TVS - Diodes > PESD1206Q-240

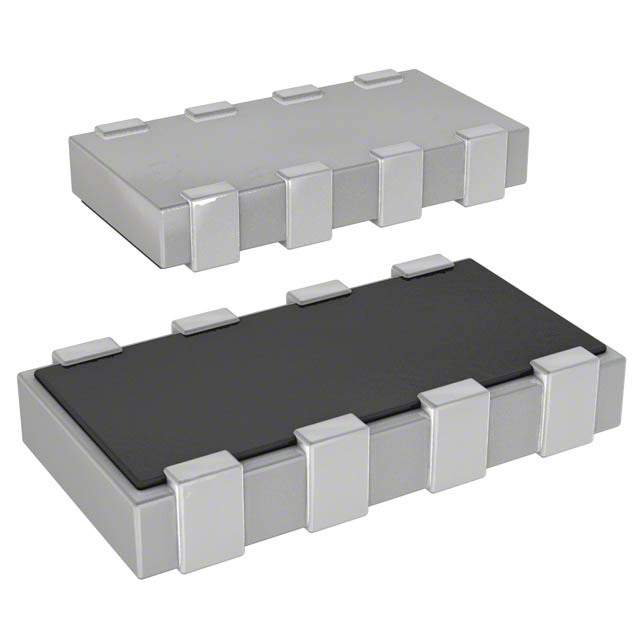

PESD1206Q-240

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PESD1206Q-240 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PESD1206Q-240
Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 24V 45V 1206
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 269305 pcs
Reference Price (In US Dollars)	5000 pcs	10000 pcs
Reference Price (In US Dollars)	$0.085	$0.084

Product parameter
Data sheet

Product parameter

Part Number	PESD1206Q-240	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 24V 45V 1206	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	269305 pcs	Data sheet	PESD Protection Devices PESD1206Q-240 Spec
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	24V
Voltage - Clamping (Max) @ Ipp	45V	Voltage - Breakdown (Min)	-
Type	Zener	Supplier Device Package	1206
Series	-	Power Line Protection	No
Power - Peak Pulse	-	Packaging	Tape & Reel (TR)
Package / Case	1206 (3216 Metric)	Other Names	PESD1206Q-240TR PESD1206Q240 RF1703-000
Operating Temperature	-55°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	-
Capacitance @ Frequency	-	Bidirectional Channels	4
Applications	General Purpose
