NANOSMDC075F-2

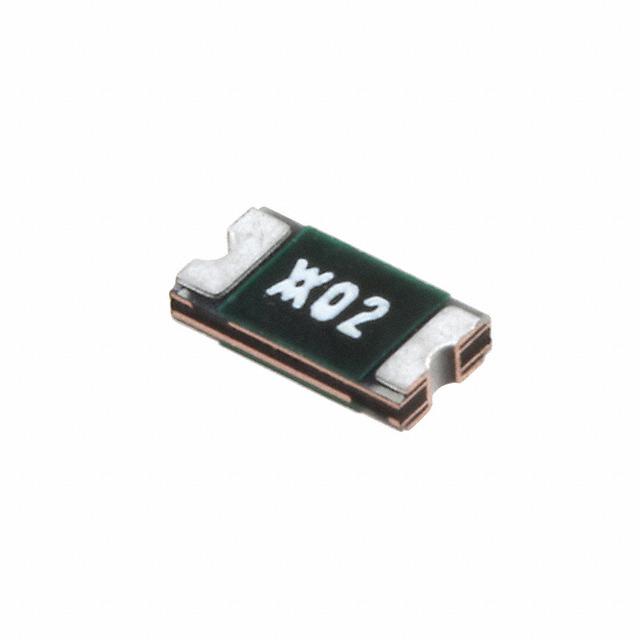

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NANOSMDC075F-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload NANOSMDC075F-2 Details in PDFSee Product Specifications for product details.
Buy NANOSMDC075F-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NANOSMDC075F-2 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 6V 750MA 1206 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.169 | $0.164 | $0.159 | $0.134 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.111 | $0.101 | $0.086 | $0.076 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NANOSMDC075F-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 6V 750MA 1206 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 264705 pcs | Data sheet | PolySwitch Resettable Devices CatalogPolySwitch, SMD CatalognanoSMDC075F Spec |
| Category | Circuit Protection | Voltage - Max | 6V |
| Type | Polymeric | Time to Trip | 100ms |
| Thickness (Max) | 0.027" (0.68mm) | Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.59mm) |
| Series | PolySwitch®, nanoSMD | Resistance - Post Trip (R1) (Max) | 300 mOhms |
| Resistance - Initial (Ri) (Min) | 90 mOhms | Ratings | - |
| Packaging | Original-Reel® | Package / Case | 1206 (3216 Metric), Concave |
| Other Names | NANOSMDC075F-2DKR NANOSMDC075FDKR NANOSMDC075FDKR-ND RF1301-000DKR-ND |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 6V 750mA Ih Surface Mount 1206 (3216 Metric), Concave | Current - Trip (It) | 1.5A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 750mA |
| Approvals | CSA, TUV, UL |
