MISM-3V1B-6-10

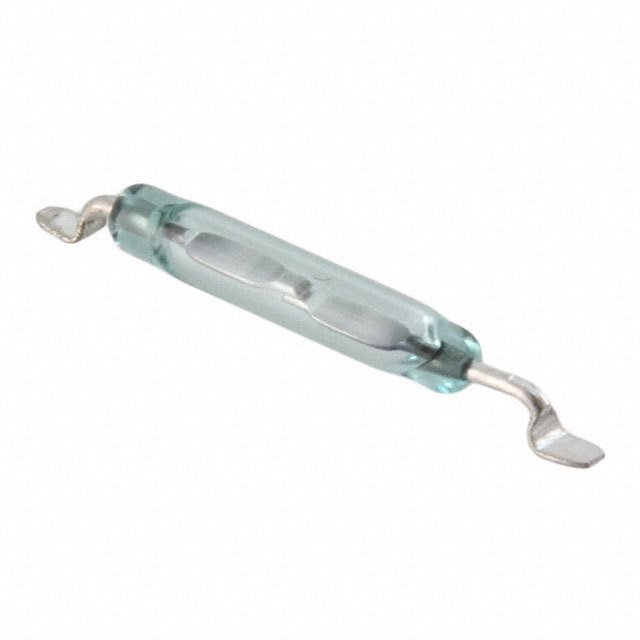

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MISM-3V1B-6-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MISM-3V1B-6-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MISM-3V1B-6-10 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | SWITCH REED SPST-NO 180MA 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $1.187 | $1.102 | $0.915 | $0.763 | $0.678 | |
| 100 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.644 | $0.542 | $0.509 | $0.475 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MISM-3V1B-6-10 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | SWITCH REED SPST-NO 180MA 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64134 pcs | Data sheet | MISM-3V1 DatasheetReed Switch Selection Guide |
| Category | Switches | Voltage - Switching DC | 170V |
| Voltage - Switching AC | 120V | Type | Glass Body |
| Termination Style | Gull Wing | Size - Body | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) |
| Series | MISM-3V1 | Release Time | 0.2ms |
| Release Range | - | Power - Rated | 10W |
| Packaging | Bulk | Other Names | F7162 MISM-3V1B 6-10 MISM-3V1B 6-10-ND MISM-3V1B-6-10-ND MISM3V1B 610 Q6104289 Q7837215 |
| Operating Temperature | -40°C ~ 125°C | Operate Time | 0.45ms |
| Operate Range | 6 ~ 10AT | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 21 Weeks |
| Length - Overall | 0.540" (13.72mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.090" (2.28mm) | Detailed Description | Glass Body Reed Switch SPST-NO 6 ~ 10AT Operate Range 10W 180mA (AC), 250mA (DC) 120V Surface Mount |
| Current - Switching | 180mA (AC), 250mA (DC) | Current - Carry | 500mA (DC) |
| Circuit | SPST-NO | Capacitance | 0.3pF |
