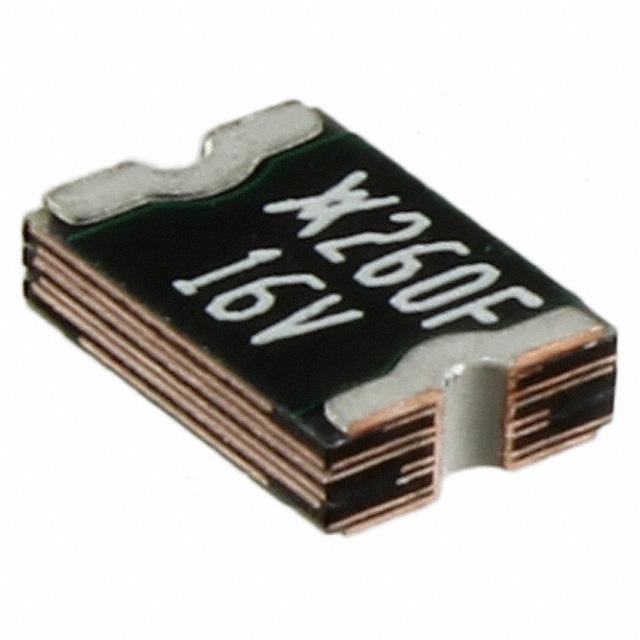

MINIASMDC260F/16-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MINIASMDC260F/16-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload MINIASMDC260F/16-2 Details in PDFSee Product Specifications for product details.
Buy MINIASMDC260F/16-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MINIASMDC260F/16-2 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 2.6A 1812 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | |
|---|---|---|---|---|---|
| $0.103 | $0.098 | $0.096 | $0.092 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MINIASMDC260F/16-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 2.6A 1812 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 228790 pcs | Data sheet | miniASMDC260F/16 SpecPolySwitch, Automotive Catalog |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 5s |
| Thickness (Max) | 0.060" (1.52mm) | Size / Dimension | 0.181" L x 0.128" W (4.60mm x 3.24mm) |
| Series | PolySwitch®, miniASMD | Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - Initial (Ri) (Min) | 15 mOhms | Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) | Package / Case | 1812 (4532 Metric), Concave |
| Other Names | MINIASMDC260F/16-2-ND MINIASMDC260F/16-2TR MINIASMDC260F/162 MINIASMDC260F/16TR MINIASMDC260F/16TR-ND MINIASMDC260F162 Q6639881 RF2162-000 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 2.6A Ih Surface Mount 1812 (4532 Metric), Concave | Current - Trip (It) | 5A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 2.6A |
| Approvals | - |
