MDSR-7-10-20

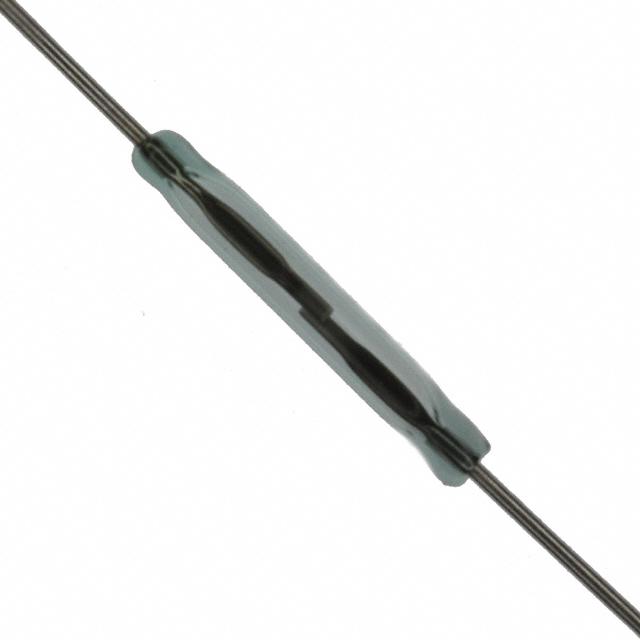

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDSR-7-10-20 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDSR-7-10-20 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDSR-7-10-20 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | SWITCH REED SPST-NO 350MA 140V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.221 | $0.195 | $0.187 | $0.175 | $0.171 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.136 | $0.125 | $0.121 | $0.109 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDSR-7-10-20 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | SWITCH REED SPST-NO 350MA 140V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 189610 pcs | Data sheet | MDSR-7 SeriesReed Switch Selection Guide |
| Category | Switches | Voltage - Switching DC | 200V |
| Voltage - Switching AC | 140V | Type | Glass Body |
| Termination Style | Axial | Size - Body | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) |
| Series | MDSR-7 | Release Time | 0.2ms |
| Release Range | - | Power - Rated | 10W |
| Packaging | Bulk | Other Names | HE500 MDSR-7 10-20 MDSR7-10-20 MDSR71020 |
| Operating Temperature | -40°C ~ 125°C | Operate Time | 0.6ms |
| Operate Range | 10 ~ 20AT | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Overall | 1.590" (40.39mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | - | Detailed Description | Glass Body Reed Switch SPST-NO 10 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Through Hole |
| Current - Switching | 350mA (AC), 500mA (DC) | Current - Carry | 800mA (DC) |
| Circuit | SPST-NO | Capacitance | 0.3pF |
