MDSM-4R-17-23

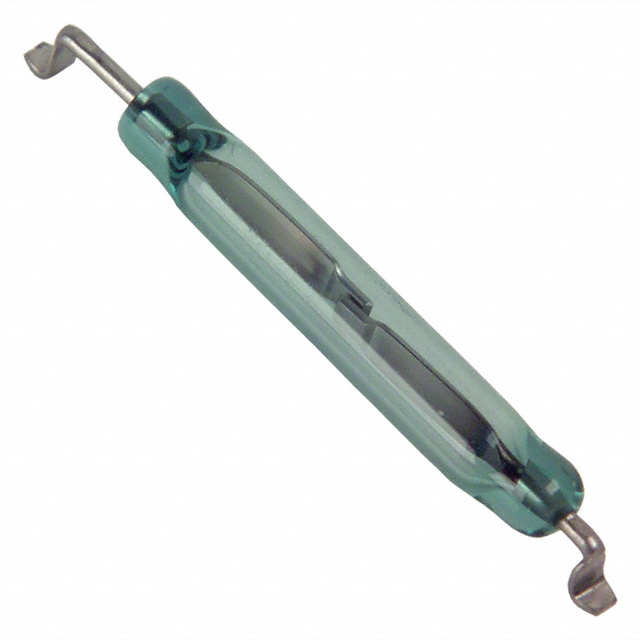

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDSM-4R-17-23 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDSM-4R-17-23 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDSM-4R-17-23 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | SWITCH REED SPST-NO 350MA 140V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $0.79 | $0.747 | $0.64 | $0.512 | ||
| 50 pcs | 100 pcs | 500 pcs | 1000 pcs | ||
| $0.469 | $0.427 | $0.373 | $0.331 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDSM-4R-17-23 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | SWITCH REED SPST-NO 350MA 140V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66201 pcs | Data sheet | MDSM-4 SeriesReed Switch Selection GuideMDSM-4R Drawing |
| Category | Switches | Voltage - Switching DC | 200V |
| Voltage - Switching AC | 140V | Type | Glass Body |
| Termination Style | Gull Wing | Size - Body | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) |
| Series | MDSM-4 | Release Time | 0.2ms |
| Release Range | - | Power - Rated | 10W |
| Packaging | Cut Tape (CT) | Other Names | F7834CT |
| Operating Temperature | -40°C ~ 125°C | Operate Time | 0.6ms |
| Operate Range | 17 ~ 23AT | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Length - Overall | 0.760" (19.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.112" (2.85mm) | Detailed Description | Glass Body Reed Switch SPST-NO 17 ~ 23AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Surface Mount |
| Current - Switching | 350mA (AC), 500mA (DC) | Current - Carry | 1.2A (DC) |
| Circuit | SPST-NO | Capacitance | 0.2pF |
