LVR055S-1

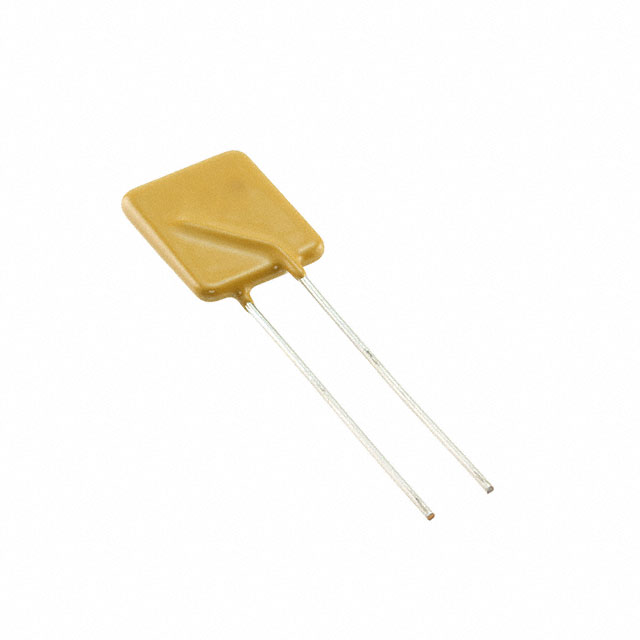

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LVR055S-1 with confidence from Components-World.HK, 1 Year Warranty
Dowload LVR055S-1 Details in PDFSee Product Specifications for product details.
Buy LVR055S-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LVR055S-1 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 240V 550MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.418 | $0.407 | $0.38 | $0.315 | $0.262 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.256 | $0.216 | $0.19 | $0.17 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LVR055S-1 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 240V 550MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 115715 pcs | Data sheet | PolySwitch, Line Voltage CatalogLVR055S-1 Spec |
| Category | Circuit Protection | Voltage - Max | 240V (265V Int) |
| Type | Polymeric | Time to Trip | 26s |
| Thickness (Max) | - | Size / Dimension | 0.551" L x 0.161" W (14.00mm x 4.10mm) |
| Series | PolySwitch®, LVR | Resistance - Post Trip (R1) (Max) | 1.45 Ohms |
| Resistance - Initial (Ri) (Min) | 450 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF0233-000 | Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.200" (5.08mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.854" (21.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 240V (265V Int) 550mA Ih Through Hole Radial, Disc | Current - Trip (It) | 1.25A |
| Current - Max | 7A | Current - Hold (Ih) (Max) | 550mA |
| Approvals | CQC, CSA, TUV, UL |
