Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > LSIC2SD120A20

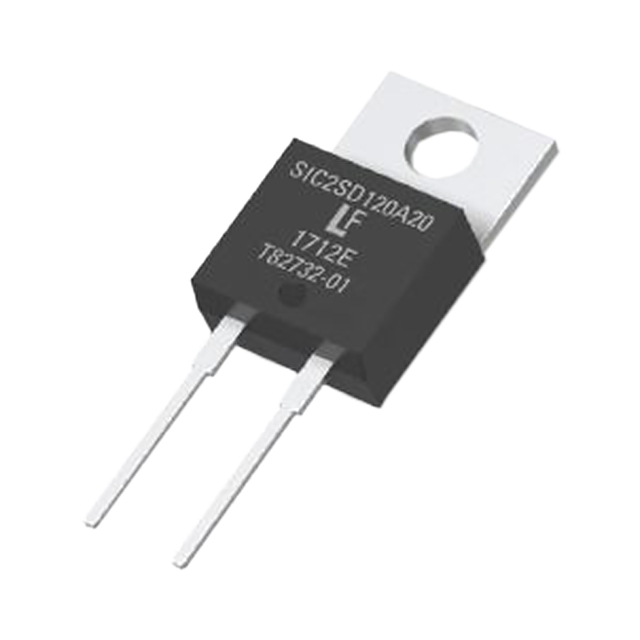

LSIC2SD120A20

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSIC2SD120A20 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LSIC2SD120A20
Manufacturer	Hamlin / Littelfuse
Description	DIODE SIC SCHOTTKY 1200V 20A
Lead Free Status / RoHS Status

~~In Stock~~ 8291 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
Reference Price (In US Dollars)	$6.574	$5.977	$5.528	$5.08	$4.632

Product parameter
Data sheet

Product parameter

Part Number	LSIC2SD120A20	Manufacturer	Hamlin / Littelfuse
Description	DIODE SIC SCHOTTKY 1200V 20A	Lead Free Status / RoHS Status
Quantity Available	8291 pcs	Data sheet	LSIC2SD120A20 Datasheet
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.8V @ 20A
Voltage - DC Reverse (Vr) (Max)	1200V	Supplier Device Package	TO-220-2
Speed	No Recovery Time > 500mA (Io)	Series	Gen2
Reverse Recovery Time (trr)	0ns	Packaging	Tube
Package / Case	TO-220-2	Other Names	F10720
Operating Temperature - Junction	-55°C ~ 175°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	25 Weeks
Diode Type	Silicon Carbide Schottky	Detailed Description	Diode Silicon Carbide Schottky 1200V 54.5A (DC) Through Hole TO-220-2
Current - Reverse Leakage @ Vr	100µA @ 1200V	Current - Average Rectified (Io)	54.5A (DC)
Capacitance @ Vr, F	1142pF @ 1V, 1MHz
