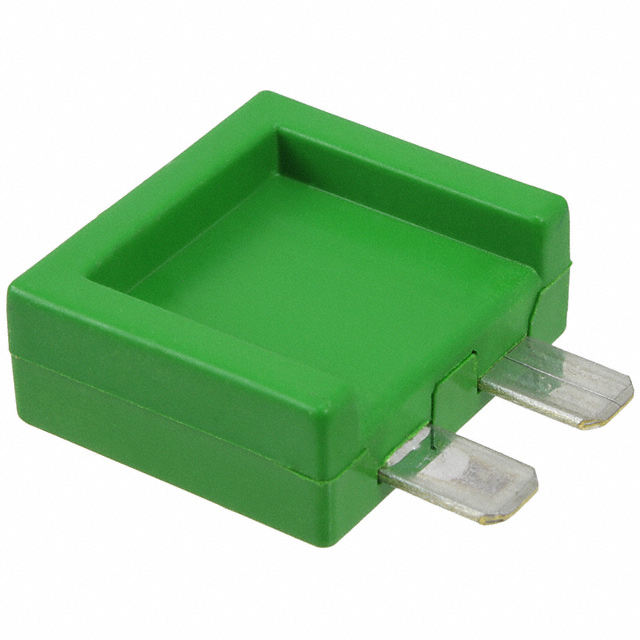

BD540-30
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD540-30 with confidence from Components-World.HK, 1 Year Warranty
Dowload BD540-30 Details in PDFSee Product Specifications for product details.
Buy BD540-30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BD540-30 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 21A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.544 | $2.457 | $2.37 | $1.843 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.536 | $1.492 | $1.272 | $1.207 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BD540-30 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 16V 21A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32316 pcs | Data sheet | BD540-30 SpecPolySwitch, Automotive Catalog |
| Category | Circuit Protection | Voltage - Max | 16V |
| Type | Polymeric | Time to Trip | 13s |
| Thickness (Max) | - | Size / Dimension | 0.987" L x 0.384" W (25.08mm x 9.75mm) |
| Series | PolySwitch®, BD540 | Resistance - Post Trip (R1) (Max) | 4.4 mOhms |
| Resistance - Initial (Ri) (Min) | 1.6 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | RF2594-000 RF2594-000-ND RF2594000 |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Spacing | 0.392" (9.95mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.880" (22.36mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 16V 21A Ih Through Hole Radial, Disc | Current - Trip (It) | 40A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 21A |
| Approvals | - |
