Home > Products > Circuit Protection > PTC Resettable Fuses > AHRF700

AHRF700

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHRF700 with confidence from Components-World.HK, 1 Year Warranty

Dowload AHRF700 Details in PDF

Request a Quote

Part Number	AHRF700
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 16V 7A RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 105294 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.184

Product parameter
Data sheet

Product parameter

Part Number	AHRF700	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 16V 7A RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	105294 pcs	Data sheet	AHRF700 Spec PolySwitch, Automotive Catalog
Category	Circuit Protection	Voltage - Max	16V
Type	Polymeric	Time to Trip	7s
Thickness (Max)	-	Size / Dimension	0.551" L x 0.118" W (14.00mm x 3.00mm)
Series	PolySwitch®, AHRF	Resistance - Post Trip (R1) (Max)	25 mOhms
Resistance - Initial (Ri) (Min)	8.7 mOhms	Ratings	AEC-Q200
Packaging	Bulk	Package / Case	Radial, Disc
Other Names	AHRF700HF RF3345-000	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	10 Weeks	Lead Spacing	0.199" (5.05mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.862" (21.90mm)
Detailed Description	Polymeric PTC Resettable Fuse 16V 7A Ih Through Hole Radial, Disc	Current - Trip (It)	13.1A
Current - Max	100A	Current - Hold (Ih) (Max)	7A
Approvals	-

Related products
Related news

Related products

AHRS380ZA-200 Image

Part#:~~AHRS380ZA-200~~
Manufacturers:~~MEMSIC~~
Description:~~IMU ACCEL/GYRO/MAG SPI~~
In Stock:~~4276~~

Part#:~~AHRF600~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 6A RADIAL~~
In Stock:~~115724~~

~~$0.167/pcs~~RFQ

AHRF450S-1.0 Image

Part#:~~AHRF450S-1.0~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 4.5A RADIAL~~
In Stock:~~5972~~

Part#:~~AHRF600S~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 6A RADIAL~~
In Stock:~~151932~~

~~$0.128/pcs~~RFQ

AHRF450-2 Image

Part#:~~AHRF450-2~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 4.5A RADIAL~~
In Stock:~~152884~~

~~$0.156/pcs~~RFQ

AHRS280ZA-200 Image

Part#:~~AHRS280ZA-200~~
Manufacturers:~~MEMSIC~~
Description:~~ATTITUDE HEADING REFERENCE SYSTE~~
In Stock:~~4313~~

AHRF650-2 Image

Part#:~~AHRF650-2~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 6.5A RADIAL~~
In Stock:~~107045~~

~~$0.178/pcs~~RFQ

Part#:~~AHRF550S~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 5.5A RADIAL~~
In Stock:~~164496~~

~~$0.136/pcs~~RFQ

AHRF600-2 Image

Part#:~~AHRF600-2~~
Manufacturers:~~Hamlin / Littelfuse~~
Description:~~PTC RESET FUSE 16V 6A RADIAL~~
In Stock:~~123968~~

~~$0.169/pcs~~RFQ

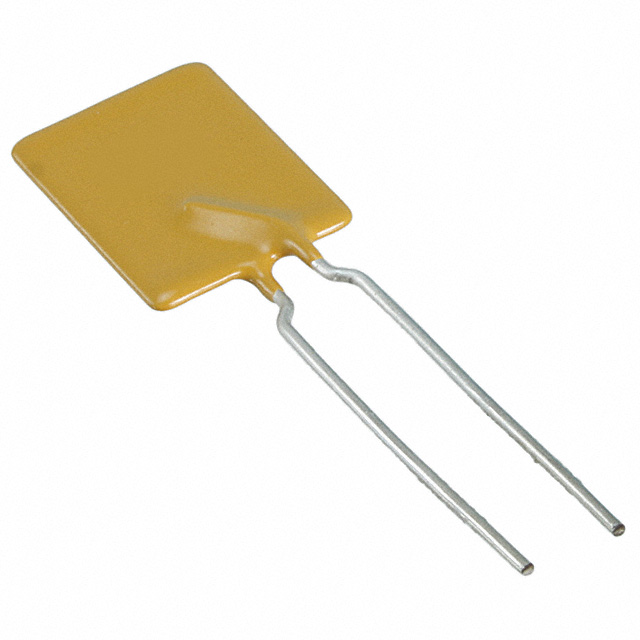

AHRF750-2 Image
