Home > Products > Switches > Magnetic, Reed Switches > 59050-020

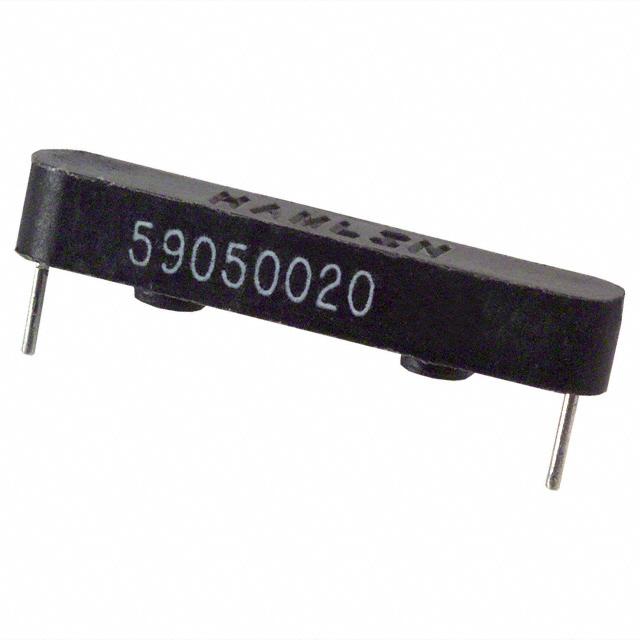

59050-020

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 59050-020 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	59050-020
Manufacturer	Hamlin / Littelfuse
Description	SWITCH REED SPST-NO 300MA 265V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 78029 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.863	$0.829	$0.777	$0.76	$0.604
	$0.57	$0.535	$0.501	$0.466

Product parameter
Data sheet

Product parameter

Part Number	59050-020	Manufacturer	Hamlin / Littelfuse
Description	SWITCH REED SPST-NO 300MA 265V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78029 pcs	Data sheet	Magnetic Actuators Datasheet
Category	Switches	Voltage - Switching DC	300V
Voltage - Switching AC	265V	Type	Molded Body
Termination Style	PC Pin	Size - Body	0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Series	59050	Release Time	1ms
Release Range	-	Power - Rated	10W
Packaging	Bulk	Other Names	59050-020-ND 59050020 F8017
Operating Temperature	-20°C ~ 105°C	Operate Time	1ms
Operate Range	17 ~ 23AT	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Length - Overall	0.900" (22.86mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.180" (4.57mm)	Detailed Description	Molded Body Reed Switch SPST-NO 17 ~ 23AT Operate Range 10W 300mA (AC), 400mA (DC) 265V Through Hole
Current - Switching	300mA (AC), 400mA (DC)	Current - Carry	1.5A (DC)
Circuit	SPST-NO	Capacitance	0.2pF
