30R500U

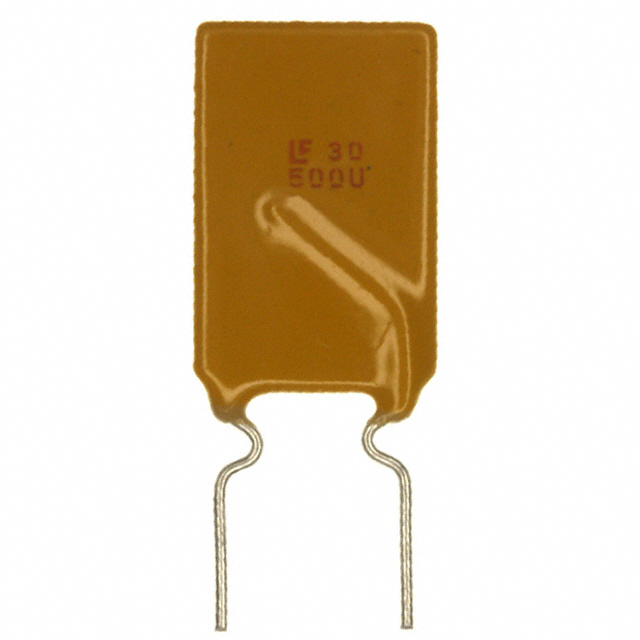

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 30R500U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 30R500U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 30R500U |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 30V 5A RADIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 30R500U | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 30V 5A RADIAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5682 pcs | Data sheet | 30R Series Datasheet |
| Category | Circuit Protection | Voltage - Max | 30V |
| Type | Polymeric | Time to Trip | 14.5s |
| Thickness (Max) | - | Size / Dimension | 0.551" L x 0.118" W (14.00mm x 3.00mm) |
| Series | POLY-FUSE®, 30R | Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - Initial (Ri) (Min) | 10 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | 030R0500 030R0500U 030R500U-ND F2028 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Spacing | 0.402" (10.20mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height - Seated (Max) | 1.008" (25.60mm) | Detailed Description | Polymeric PTC Resettable Fuse 30V 5A Ih Through Hole Radial, Disc |
| Current - Trip (It) | 10A | Current - Max | 40A |
| Current - Hold (Ih) (Max) | 5A | Approvals | cURus, TUV |
