Home > Products > Circuit Protection > Fuseholders > 01000020Z

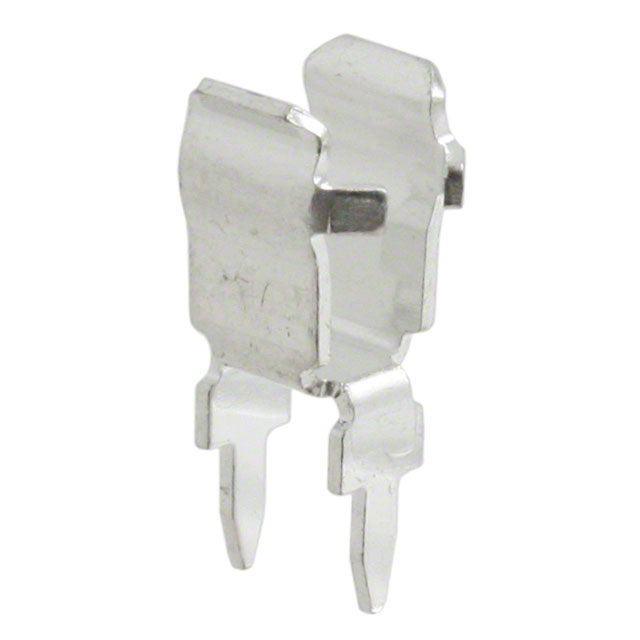

01000020Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 01000020Z with confidence from Components-World.HK, 1 Year Warranty

Dowload 01000020Z Details in PDF

Request a Quote

Part Number	01000020Z
Manufacturer	Hamlin / Littelfuse
Description	FUSE CLIP CARTRIDGE 600V 20A PCB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 260896 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.21	$0.203	$0.196	$0.165	$0.137
	$0.124	$0.106	$0.093	$0.084

Product parameter
Data sheet

Product parameter

Part Number	01000020Z	Manufacturer	Hamlin / Littelfuse
Description	FUSE CLIP CARTRIDGE 600V 20A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	260896 pcs	Data sheet	100/445/030/520 Series
Category	Circuit Protection	Voltage	600V
Termination Style	PC Pin	Series	100
Other Names	100020 F4225	Orientation	Horizontal
Number of Circuits	1	Mounting Type	PCB
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuseholder Type	Clip
Fuse Type	Cartridge	Fuse Size	5mm Dia
For Use With/Related Products	5mm Dia	Detailed Description	Fuse Clip 20A 600V 1 Circuit Cartridge PCB
Current Rating	20A	Contact Material	Phosphorus Bronze
Contact Finish	Tin
