17011542603

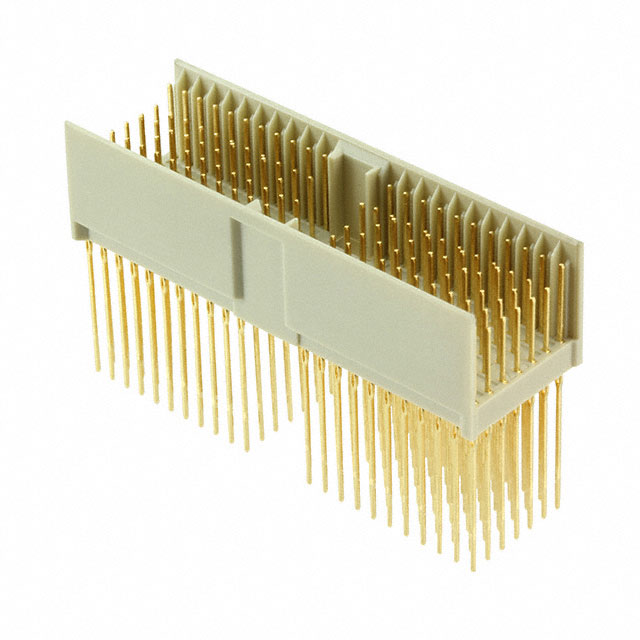

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 17011542603 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 17011542603 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 17011542603 |
|---|---|
| Manufacturer | HARTING |
| Description | HAR-BUS HM MEL. TYP A, AFS 2, TU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.405 | $6.877 | $6.172 | $5.996 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.29 | $4.938 | $4.832 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 17011542603 | Manufacturer | HARTING |
|---|---|---|---|
| Description | HAR-BUS HM MEL. TYP A, AFS 2, TU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6344 pcs | Data sheet | 1701154x603 DrawingDevice Connectivity Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit | Series | har-bus® HM |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 1195-5252 17011542603-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 5 + 2 | Number of Positions Loaded | All |
| Number of Positions | 154 (110 + 44 Ground) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide |
| Detailed Description | 154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole | Current Rating | 1A |
| Contact Finish Thickness | - | Contact Finish | Gold or Gold-Palladium |
| Connector Usage | CompactPCI P4 | Connector Type | Header, Male Pins |
| Connector Style | A 22 |
