15250682601000

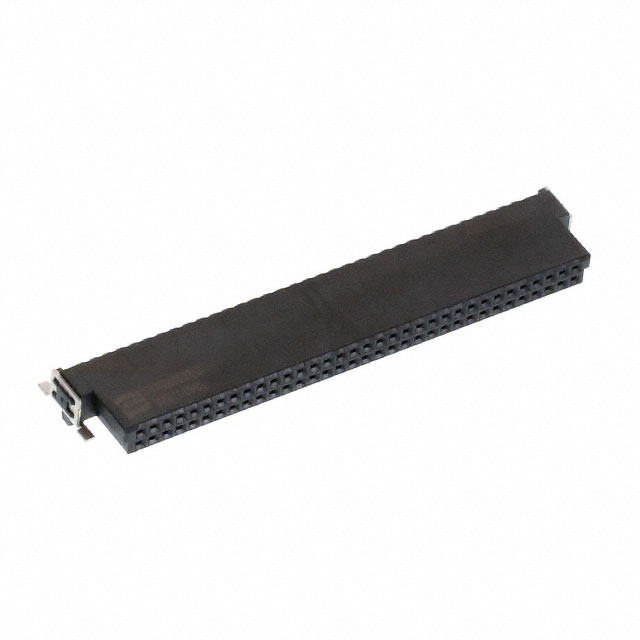

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15250682601000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15250682601000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15250682601000 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN RECPT 68POS 1.27MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 560 pcs | 1120 pcs | 1680 pcs | ||
|---|---|---|---|---|---|
| $1.791 | $1.567 | $1.534 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15250682601000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN RECPT 68POS 1.27MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23372 pcs | Data sheet | 1525yyyy601yyy DrawingHar-Flex Connector CatalogHar-Fllex Connector Overview |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | har-flex® | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1195-3421-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 68 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.120" (3.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | 68 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | - | Connector Type | Receptacle |
| Applications | General Purpose |
