15150122401000

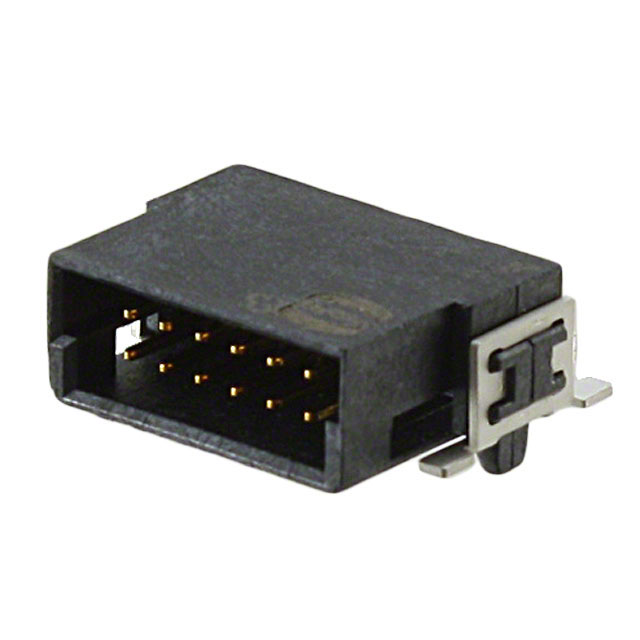

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15150122401000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15150122401000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15150122401000 |
|---|---|
| Manufacturer | HARTING |
| Description | HAR-FLEX THR ANGLED MALE 12PIN P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 440 pcs | 880 pcs | 1320 pcs | 2200 pcs | 3080 pcs |
|---|---|---|---|---|---|
| $1.021 | $0.904 | $0.846 | $0.816 | $0.787 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 15150122401000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | HAR-FLEX THR ANGLED MALE 12PIN P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38609 pcs | Data sheet | har-flex® THR Series Catalog1515yyy2401yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | har-flex® |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 1195-5655-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.167" (4.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 12 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
