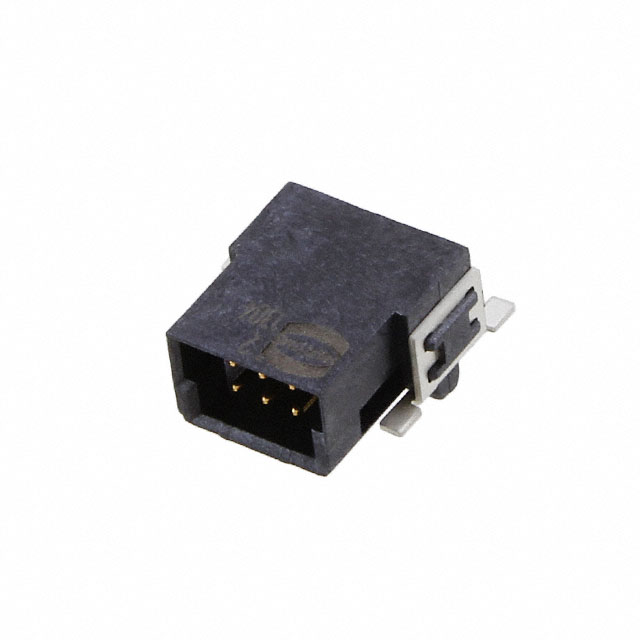

15150062601000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15150062601000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15150062601000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15150062601000 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN HEADER 6POS SMT R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 560 pcs | 1120 pcs | 1680 pcs | 2800 pcs | 5600 pcs |
|---|---|---|---|---|---|
| $0.673 | $0.574 | $0.554 | $0.534 | $0.514 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 15150062601000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HEADER 6POS SMT R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62868 pcs | Data sheet | Har-Flex Connector Catalog1515yyyy601yyy DrawingHar-Fllex Connector Overview |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | har-flex® |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 1195-3380-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.167" (4.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 6 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
