14120814002000

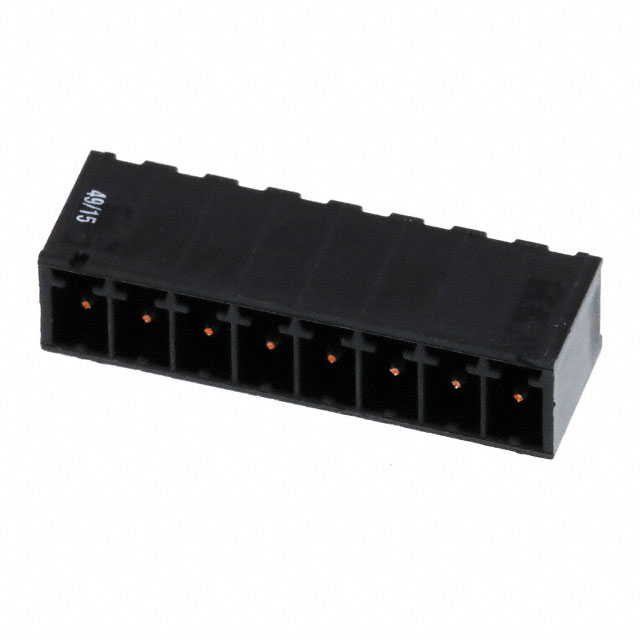

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 14120814002000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 14120814002000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 14120814002000 |
|---|---|
| Manufacturer | HARTING |
| Description | TERM BLOCK HDR 8POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.932 | $0.894 | $0.82 | $0.783 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.745 | $0.652 | $0.634 | $0.54 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 14120814002000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | TERM BLOCK HDR 8POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69743 pcs | Data sheet | 1412xx14002xxx Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | har-flexicon® | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1195-6077 14120814002000-ND |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.276" (7.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon, Polyphthalamide (PPA) |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Current - UL | 11A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
