09695017247

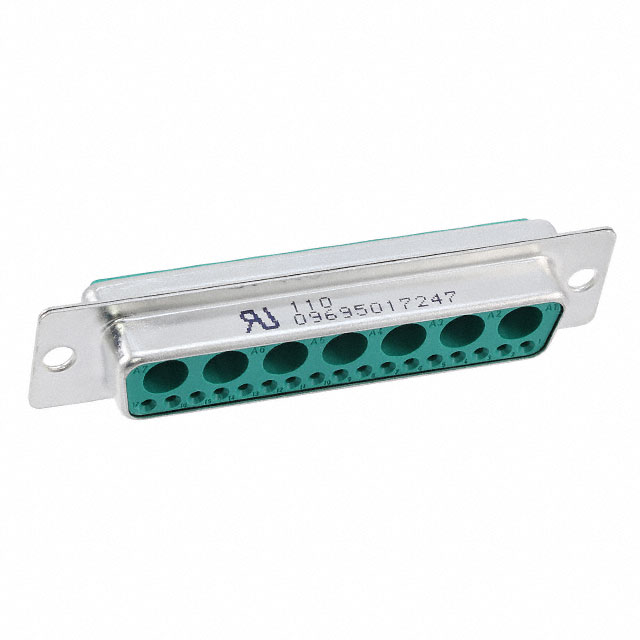

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09695017247 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09695017247 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09695017247 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB RCPT 24P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.168 | $3.791 | $3.696 | $3.412 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.222 | $2.938 | $2.748 | $2.521 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09695017247 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB RCPT 24P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12894 pcs | Data sheet | Device Connectivity Catalog0969501x247 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 09695017247-ND 1195-5189 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 24 (17 + 7 Coax or Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 24 (17 + 7 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | - | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | - |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
