09693017211

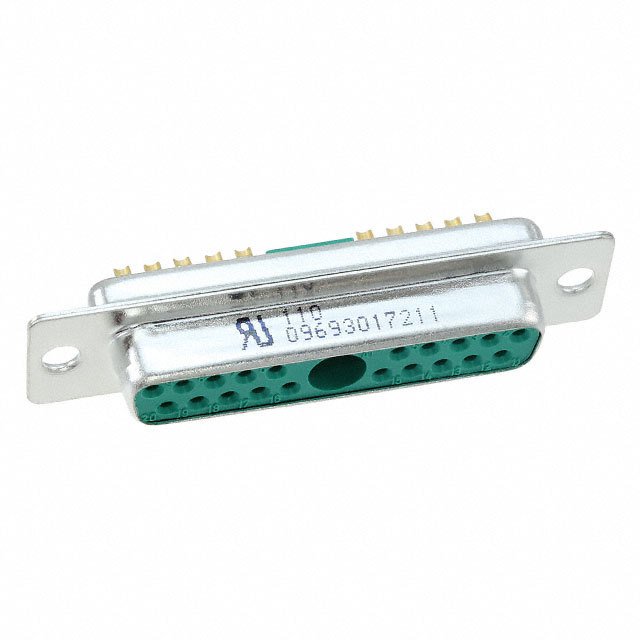

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09693017211 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09693017211 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09693017211 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB RCPT 21P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.301 | $3.912 | $3.814 | $3.52 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.325 | $3.032 | $2.836 | $2.601 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09693017211 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB RCPT 21P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14362 pcs | Data sheet | Device Connectivity Catalog0969301x211 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 21W1 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 09693017211-ND 1195-5171 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 21 (20 + 1 Coax or Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 21 (20 + 1 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | - | Contact Form | - |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
