09692100033

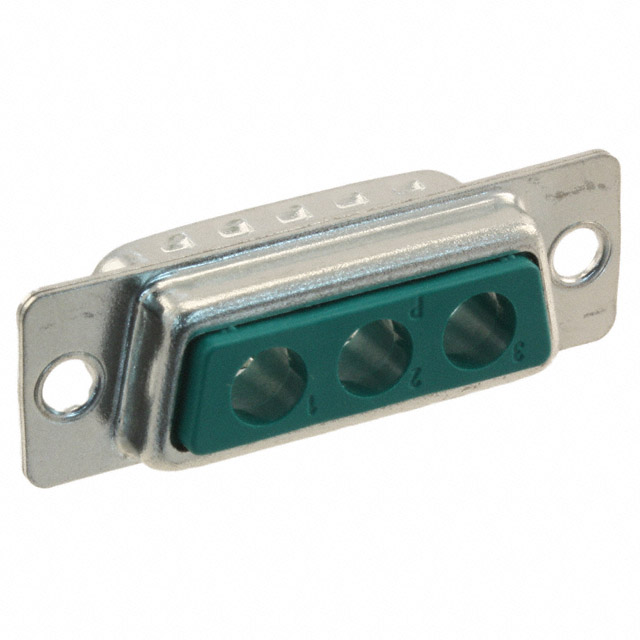

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09692100033 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09692100033 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09692100033 |
|---|---|
| Manufacturer | HARTING |
| Description | DSUB MA 3W3 SHELL W/O CONTACTS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.191 | $1.143 | $1.048 | $1.001 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.953 | $0.834 | $0.81 | $0.691 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09692100033 | Manufacturer | HARTING |
|---|---|---|---|
| Description | DSUB MA 3W3 SHELL W/O CONTACTS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56961 pcs | Data sheet | 09692100033(500) Drawing |
| Category | Connectors, Interconnects | Shell Size, Connector Layout | 2 (DA, A) - 3W3 |
| Shell Material, Finish | Steel, Tin Plated | Shell Finish Thickness | - |
| Series | - | Packaging | Bulk |
| Other Names | 1195-2840 9692100033 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 3 (Coax or Power) |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Dielectric Material | Polyester, Glass Filled |
| Detailed Description | Plug for Male Contacts Housing D-Sub, Combo Connector 3 (Coax or Power) Position | Contact Type | Coax or Power |
| Connector Type | Plug for Male Contacts | Connector Style | D-Sub, Combo |
| Color | - |
